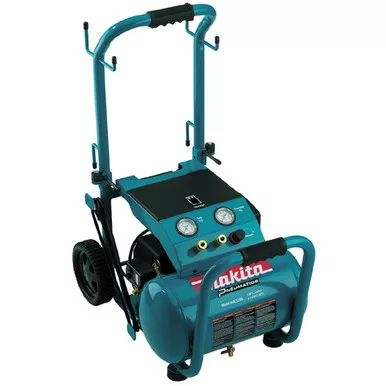

Features & Benefits:
- Designed Especially For Framing Nailers
- Oil Lubricated
- Oil lubricated for cooler operation and reduced noise
- High output cast iron pump delivers maximum performance and operational life
- Big BoreTM cylinder and piston feature high output at lower RPM with reduced heat buildup, less noise and longer operational life
- Low amperage draw reduces incidents of tripped breakers and voltage drops that cause premature motor failure
- Easy view oil gauge and large pressure gauges for quick identification
- Air pressure regulator enables easy adjustment of line pressure
- Features 2 quick connect air hose fittings
- Finned discharge tube promotes safe and efficient cooling
- Stores 50′ of 3/8″ air hose with handle folded or upright
Specifications:
- Motor — 3.0 hp
- Pump — Oil-Lubricated
- Tank — 5.2 gal (19.7L)
- Performance (90 PSI) –6.5 CFM
- Noise level –90 dB(A)
- AMPS (120V) –13.8 A
- Dimensions (L x W x H, with Handle Folded) — 30-5/16″ x 20 x 21-13/16″ (770 mm x 510 mm x 553 mm)
- Maximum Pressure — 140 PSI
- Net Weight –88.0 lbs (39.9 kg)
Standard Equipment:
1/4 Quick Coupler, (10TT-8), Compressor Oil (0.25L) (181122-A)
