Features & Benefits:
- Fixed Base
- On/Off Toggle Switch
- Electronic Speed Control, Variable Speed, Soft Start
- Industrial Cam-Lock enables fast and easy depth adjustment and removal of motor
- Plunge Base
- 3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
- Conveniently located Plunge Locking Lever for easy engagement during operation
Specifications:
- Collet Capacities: –1/4″ & 1/2″ (6.35 mm & 12.7 mm)
- Plunge Capacity –2-19/32″ (66 mm)
- No Load Speed –8,000 – 24,000 RPM
- Center Hole Diameter — 1-3/16″ (30.5 mm)
- AMP (120V) — 11.0 A
- Vibration Level — (Unavailable)
- Noise Level — (Unavailable)
- Base Diameter — 5-3/4″ (146 mm)
- Overall Height:
- Fixed –8-3/4″ (223 mm)
- Plunge –11-1/2″ (292 mm)
- Net Weight –7.3 lbs (3.3 kg)
Standard Equipment:

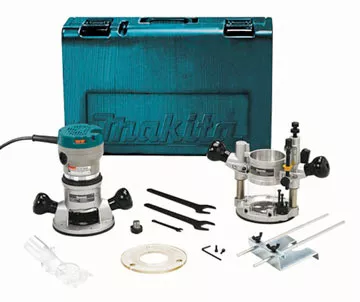

2-1/4 hp Router Motor RF1101, Plunge Base (193457-3), 1/4″ Collet (193214-9), 1/2″ Collet (193215-7), Dust Nozzle (P-80009), Straight Guide (193073-1), Base Plate (193155-9), Two Wrenches 27 (781031-5), Hex Wrench 4 (783202-0), Plastic Carrying Case (125153-5)
