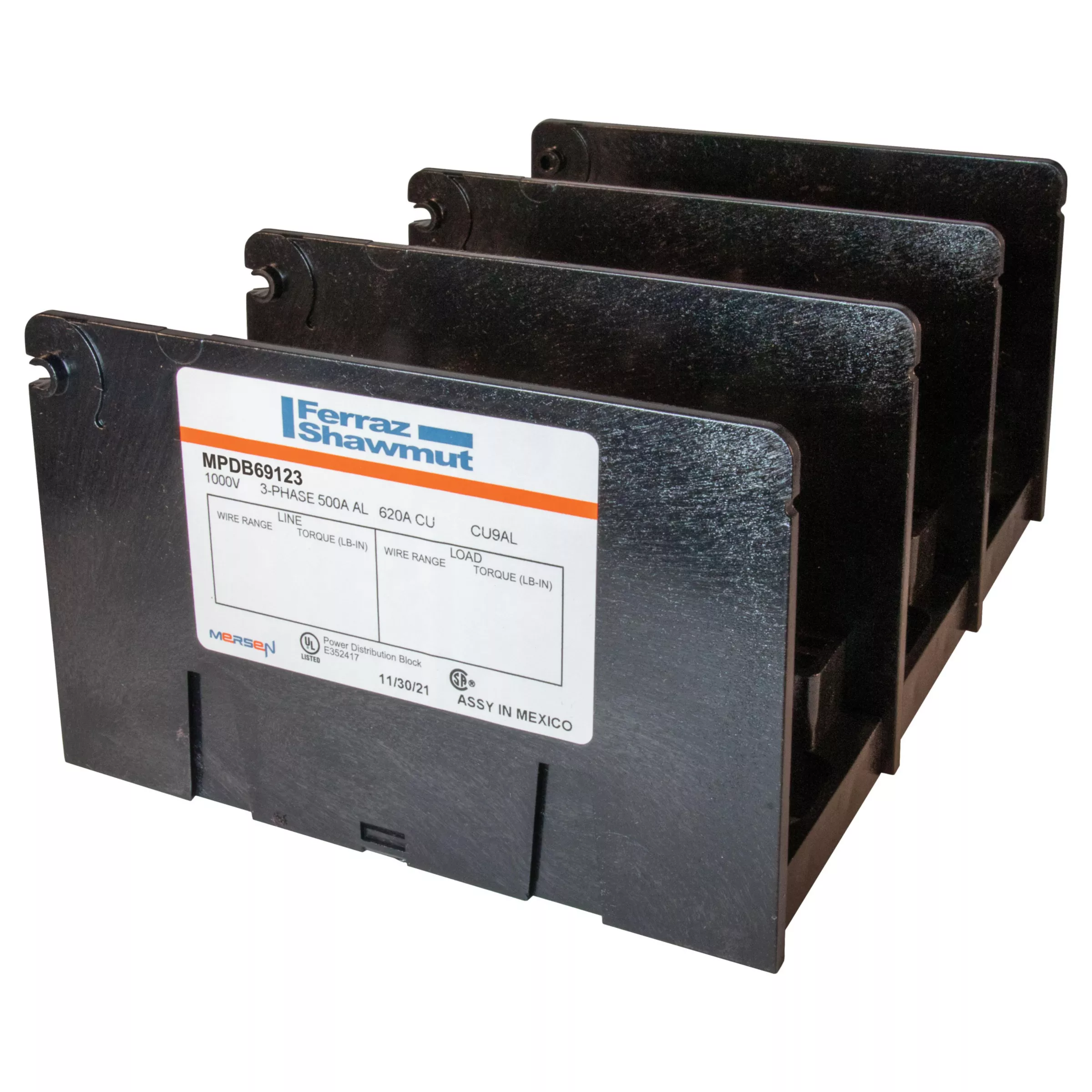

The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Specifications
| Brand Name | Ferraz Shawmut | Type | Open-Style |
| Voltage Rating | 600 VAC | Amperage Rating | 620 A |
| Number of Poles | 3 | Mounting Type | Direct Screw Mount |
| Connection Type | Box | Standards | UL Listed – File E352417CSA Certified – Class 6228 01RoHS Compliant |
| Application | Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off Points | UPC | 782001449506 |
