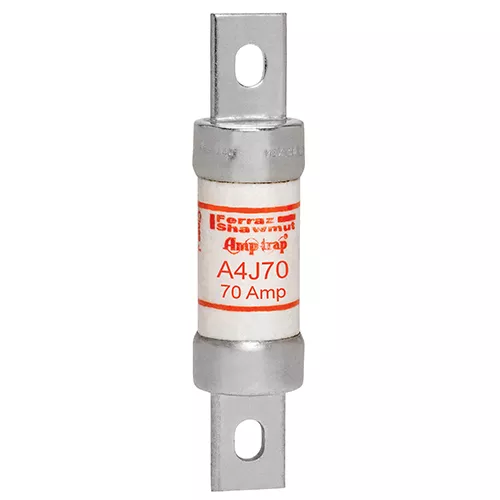

Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Specifications
| Brand Name | Ferraz Shawmut | Item Name | North American Power Fuse |
| Type | North American Power Fuses | Voltage Rating | 600 VAC |
| Amperage Rating | 70 A | Interrupt Rating | 200 kA |
| Fuse Class | Class J | Mounting Type | Clip |
| Terminal Connection | Blade | Construction | Fiberglass |
| Standards | UL 2488, CSA File Number E2137, CSA C22.2 No. 248.8, IEC 269-2-1, RoHS Compliant | Application | For Capacitors, Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating and General Loads |
| UPC | 782001960285 |
