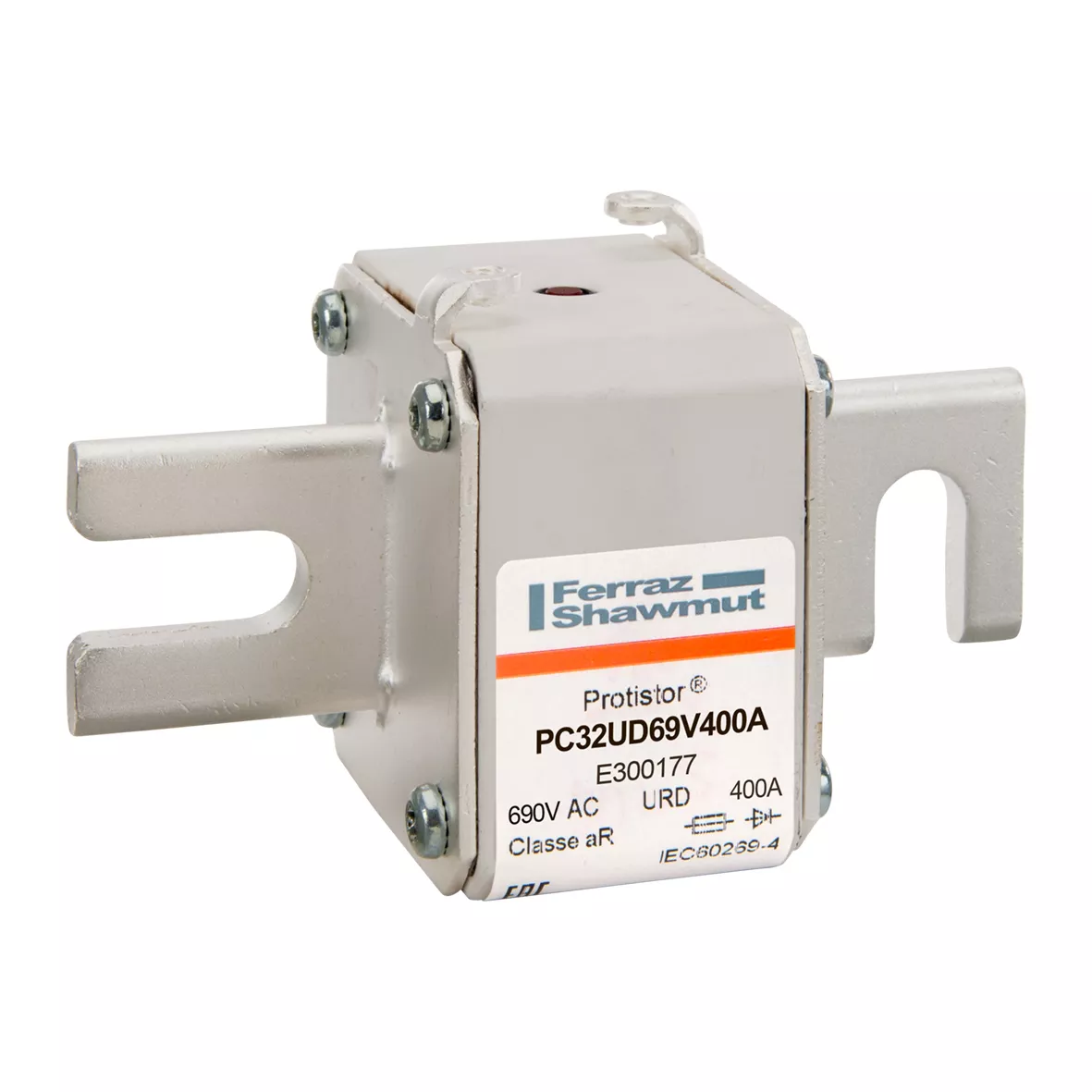

The 690/700V Protistor fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.The Protistor have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.KEY FEATURES:-Multiple body sizes and terminals or blades combination -aR Class according to IEC 60269-4 and VDE 636-23 -Very low I²t for improved semiconductor protection -Ultra fast acting -Current limiting -Superior cycling capability APPLICATIONS:- Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.
Specifications
| Brand Name | Ferraz Shawmut | Sub Brand | Protistor® |
| Item Name | Semiconductor Fuse | Type | European, High Speed |
| Voltage Rating | 700 VAC | Amperage Rating | 400 A |
| Interrupt Rating | 200 kA | Body Style | Square |
| Mounting Type | Bolt | Terminal Connection | DIN Type Blade |
| Dimensions | 110 mm L x 59 mm W x 65 mm H | Indication | Striker |
| Contact Material | Silver Plated Copper | Construction | Ceramic |
| Standards | IEC 60269-4 Compliant, UL/CSA Recognized E76491, CCC GB 13539.4 | Application | Protection of Inverters, Motor Drives, UPS Systems and Similar 690 V or Less Equipments |
| UPC | 3605340324327 |
