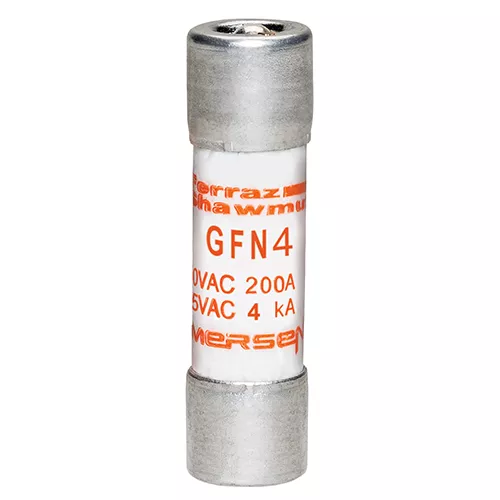

GFN midget indicating fuses are available in 34 ratings from 1/10A through 30A. These time-delay fuses have built-in blown fuse indicators which pop out at the end of the fuse to visually indicate when the fuse has operated. Indicators may be used to trip a switch for remote as well as visual indication. (Not for Branch Circuit Protection).
Specifications
| Brand Name | Ferraz Shawmut | Type | Supplemental Protection |
| Voltage Rating | 250 VAC | Amperage Rating | 4 A |
| Interrupt Rating | 0.2 kA | Fuse Class | Midget |
| Mounting Type | Clip | Standards | UL Listed to Standard 248-14 (1/10 to 15A)CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A) |
| Application | For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits. | UPC | 782001761721 |
