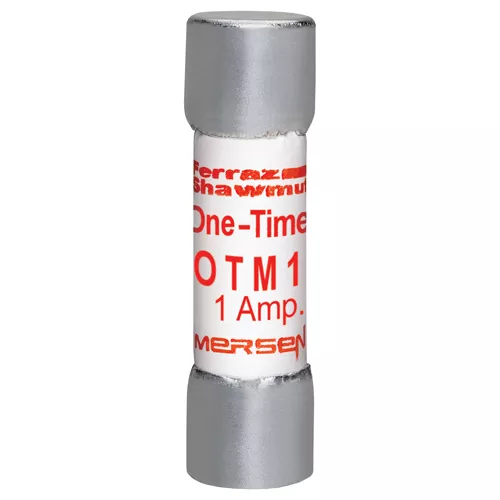

One-Time OTM midget fuses provide low-cost protection for 250VAC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection).
Specifications
| Brand Name | Ferraz Shawmut | Item Name | Midget Fuse |
| Type | Supplemental Protection | Voltage Rating | 250 VAC |
| Amperage Rating | 1 A | Interrupt Rating | 10 kA |
| Fuse Class | Midget | Mounting Type | Clip |
| Terminal Connection | Ferrule | Dimensions | 1-1/2 x 13/32 in |
| For Use With | UltraSafe Fuseholders | Standards | UL 24814, CSA C22.2 No. 248.14, RoHS Compliant |
| Application | For Supplemental Protection of Circuits up to 250 VAC and 10 kA | UPC | 782001705015 |
