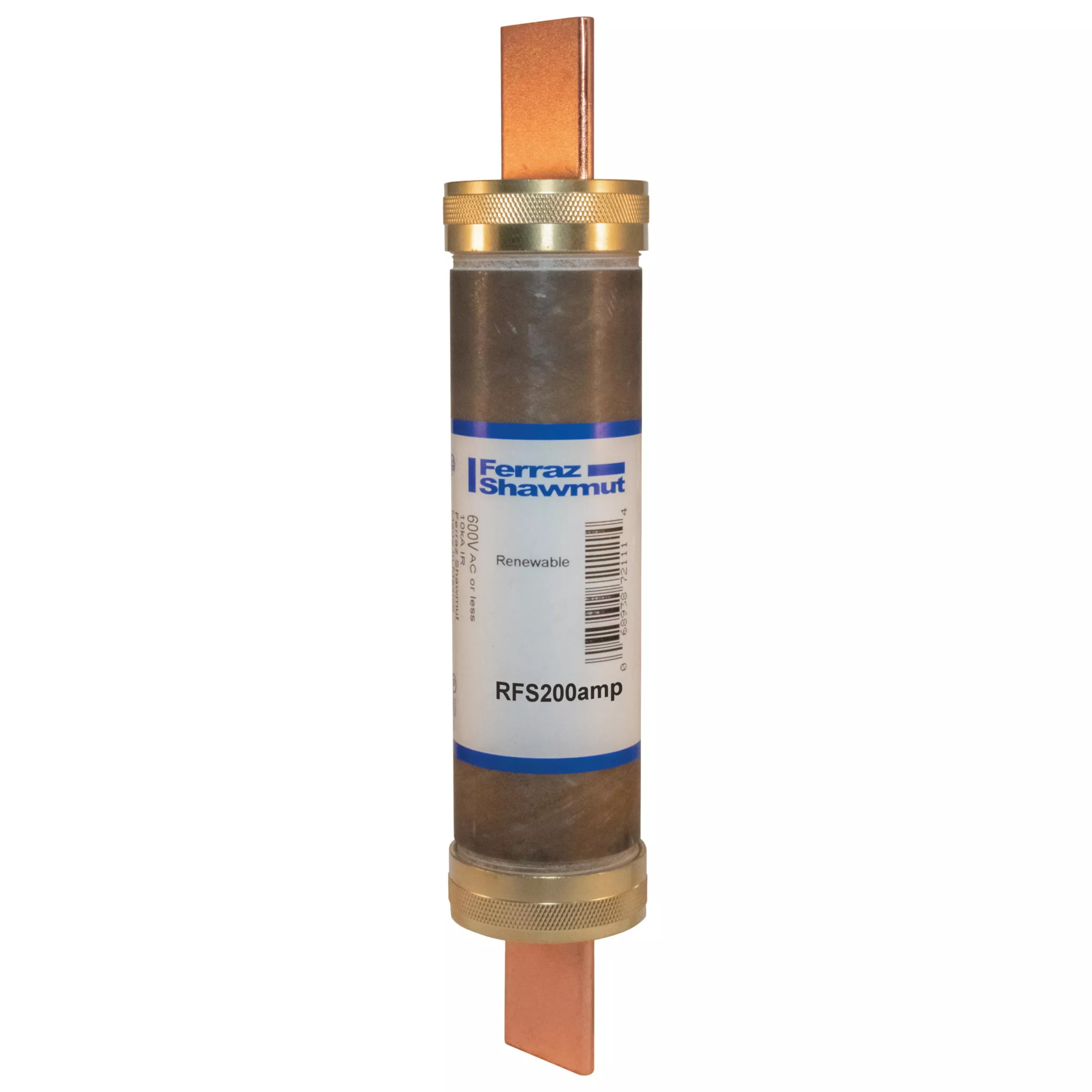

RFS general purpose Class H renewable fuses are suitable for application where available short-circuit currents do not exceed 10,000 amperes. For replacement fuse links select RLS series die-cut zinc replacement links from 3 to 600 amperes in 30 ratings.
Specifications
| Brand Name | Ferraz Shawmut | Item Name | Power Fuse |
| Type | Renewable, Fast Acting | Voltage Rating | 600 VAC |
| Amperage Rating | 200 A | Interrupt Rating | 10 kA |
| Fuse Class | Class H | Mounting Type | Clip |
| Terminal Connection | Blade | Contact Material | Brass |
| Standards | UL Listed to Standard 248-7, File E2137 CSA Certified to Standard C22.2 No. 248.15 | Application | For General Purpose Loads Where Short-Circuit Currents are 10000 A or Less |
| UPC | 068938721190 |
