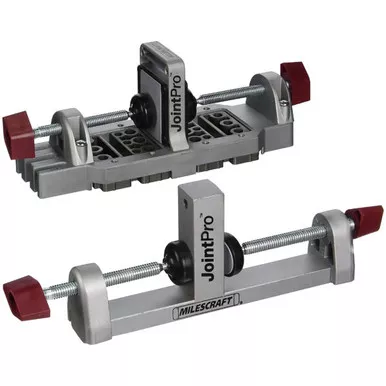

JointPRO (Imperial)
Versatility at its Best; Create Edge, Corner and Surface Joints with this Precise Doweling Jig.
Even Novice Woodworkers Can Make Professional-Caliber Doweled Joints!
JointPRO quickly and accurately creates strong doweled joints. Interchangeable hardened steel bushing blocks allow you to drill up to six matching holes per set-up. The self-clamping jig securely holds workpieces in place. JointPRO includes two detachable clamps allowing for horizontal or vertical positioning. This doweling jig includes non-slip pads, preventing both slipping and marring. Don’t let your workpiece slip!
JointPRO Doweling Jig:
- Self-clamping jig securely holds work pieces in place
- Clamp both boards for precise hole alignment with the main body and auxiliary clamp
- Drill up to six matching holes per set-up
- Multiple joint capabilities
Bushing Blocks
- Interchangeable hardened steel bushing blocks for accurate joints
- Drill Guide Bushing Block Sizes: 3/8″, 1/4″, 5/16″
Detachable Clamps
- Allow for horizontal or vertical positioning
Non-slip Pads
- Prevent slipping and marring
We offer a metric version of this product as well. If you would prefer it in metric, please include that in the notes section of your order at checkout.
Specs
- Main Body Material: Aluminum
- Drill Guide Bushing Block Material: Hardened Steel
- Drill Guide Bushing Block Sizes: 3/8″, 1/4″, 5/16″
- Max. Opening: Side 1: 2″; Side 2: 2-5/8″
