Product Description

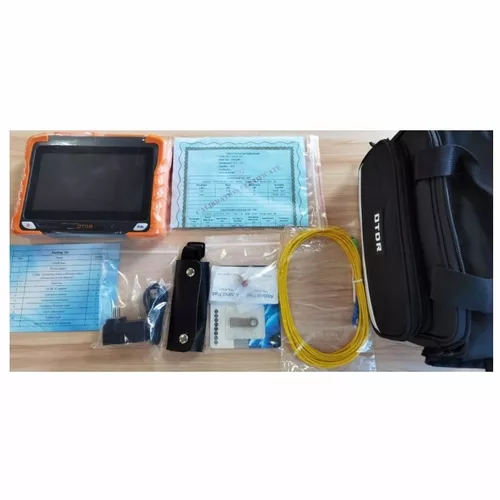

OPTIX AMERICA WRX5000-S3SM Single Mode OTDROPTIX AMERICA WRX5000-S3SM Single Mode OTDRThe WRX5000 series single mode + multi mode optical time domain reflectometer (OTDR) is the new generation of intelligent tester for the detection of fiber communications systems and optical network construction for outstanding performance and is specially designed for long haul application. This specially designed unit offers a seven inch capacitive touch screen which integrates nine modules. It has excellent accuracy of short fiber test and automatic test and is equipped with a rich Ethernet test (Ping/PPOE, etc) and supports APP control. The WRX5000 series is used to measure the length, loss, and connection quality of optical fiber used in engineering construction, line maintenance & testing, emergency repair, and the development and production of optical fiber cables.Features- 7″ capacitive touch screen zoom in and out curve- 0.5m Event Dead Zone- Maximum dynamic range 45 dB- Supports SM/MM/SM+MM test- Online detection, effective APD active protection- PON network online test- Supports fast charging protocol and power bank- Ethernet test, supporting Ethernet Remote Test- Integrates OTDR, VFL, LS, OPM, Event Map, End Detection,Optical Loss Test, Ethernet Test, Remote Test, File Management- Small and light- Detection of online test- Caution function- Report printing- Files batch processing- Multiwavelength simultaneous test- Automatic analysis of results- BluetoothWeight: 1.2kg(2.65 lbs) Size: 215mmx160mmx50mm(8.47 x 6.3 x 1.97 inches)Ordering InformationModelWRX5000-S3Wavelength1310nm/1550nm Dynamic Range42dB/40BPackage includes:Host OTDRAC/DC Power AdapterU Disk (containing analysis software)Data lineOTDR SC AdapterOPM SC AdapterUsers ManualCalibration certificateCertificate/Warranty CardClean cotton pieceSpecial backpack for instrument
