Product Description

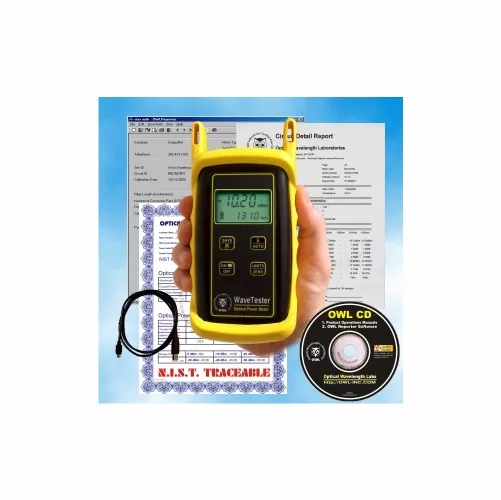

OWL OPTICAL WAVELENGTH LABORATORIESWT-1 WaveTester optical power meter with data storage NEWFEATURES:1mm photodetector with 2.5mm universal adapter (ST, SC,and FC)Multimode and singlemode readyBacklit graphic LCD display with intuitive user interfaceSimple 4-key operationPower measurements shown in dBm, dB, or microwattsStores optical references for each wavelength to be used foroptical loss testingLong battery life – over 250 hrs on one 9v batteryData storage for 200 pointsUSB interface for continuous data logging, report printing, ordata downloadingOWL OPTICAL WAVELENGTH LABORATORIESSReporter software for downloading data and printingformatted fiber certification reportsOptional integrated visual fault locator (VFL)APPLICATIONS:The WaveTester is a high accuracy, high resolution,microprocessor controlled, optical power meter. It has a 65dBdynamic range, and is NIST traceable at 850, 1300, 1310,and 1550nm, making it ideal for both singlemode andmultimode fiber testing. Additionally, it comes calibrated at1490nm, allowing the meter to measure optical loss at thewavelengths used in Fiber To The Home (FTTH) PONnetworks.It has an attractive handheld case with a backlit, graphic,liquid crystal display, and 4-key keypad for easy operation. Itis offered with a 2.5mm universal fiber connector, will operatefor over 250 hours on a standard high-capacity 9v battery,and has built-in auto shutdown.The WaveTester will store reference values for eachwavelength to be used for optical loss measurements, andcan store up to 200 measured data points.Stored data can be downloaded to our free OWL OPTICAL WAVELENGTH LABORATORIESSReportersoftware to produce formatted certification reports.Optionally, the battery charging port in the WaveTester can bereplaced with a precision-coupled visual fault locator that isoptimized for fiber optics. Its high-intensity red laser allowsfor fiber identification up to 1.5 kilometers away.This optional VFL port can also be used to check for faultswithin a few feet of its launch point. When the bright red lightencounters a fault, the light is deflected into the jacket,producing a red glow at the point of the fault.
