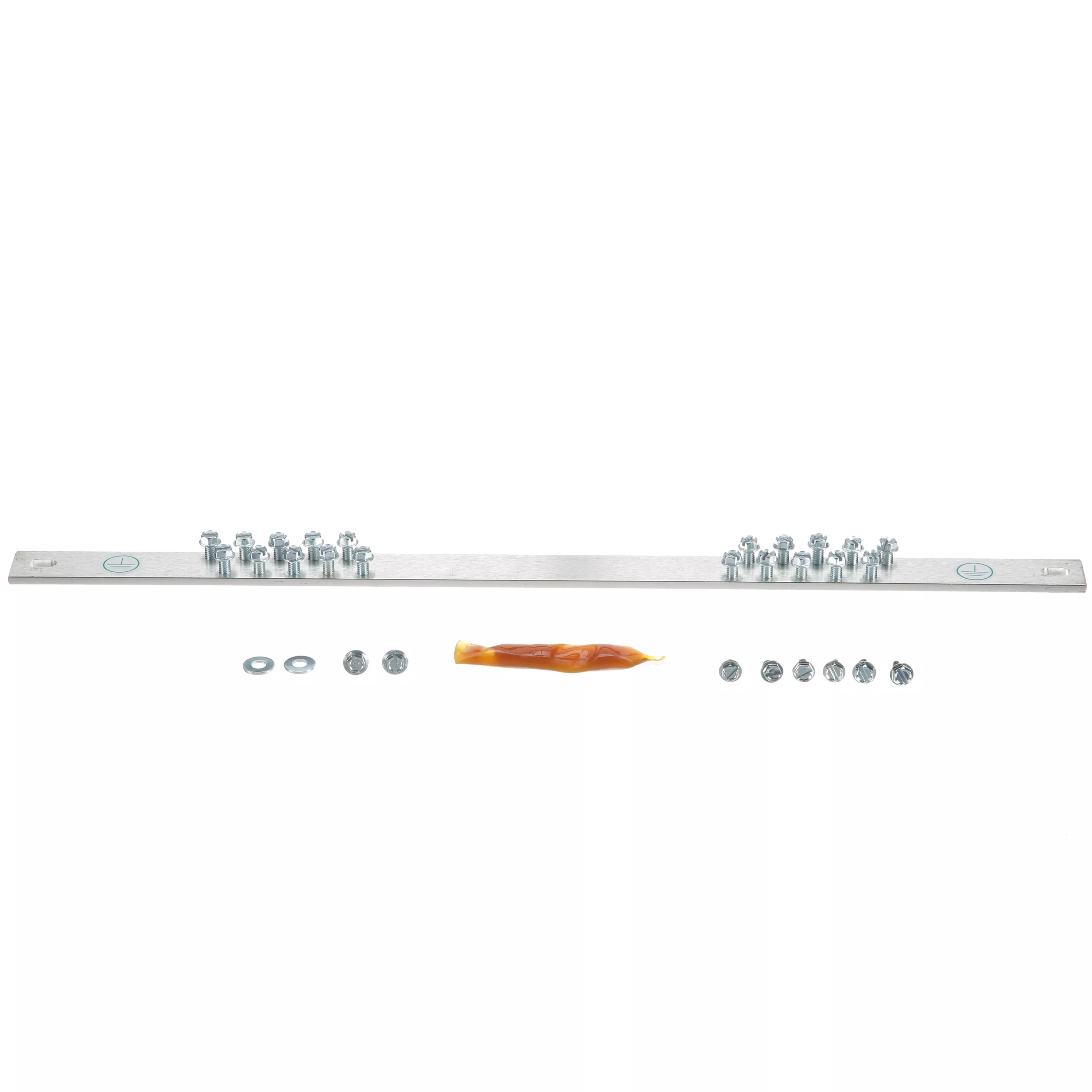

Grounding busbar, 19″ (483mm) length, tin-plated, twenty holes arranged for flexibility in mounting with twenty 12-24 x 1/2″ hex head screws installed, mounting hole sets have 5/8″ (15.9mm) spacing, provided with two each 12-24 x 1/2″, M6 x 12mm thread-forming screws, and two 12 flat washers for mounting.KEY FEATURES AND BENEFITS: • Provide the common grounding point within the cabinet• Optimized for installation on 19″ racks or cabinets that meet EIA-310-D• Can be positioned anywhere on the rack or cabinet• Available pre-assembled with twenty mounting screws for quick and easy installation• Engineered to comply with US and International grounding requirements
Specifications
| Brand Name | Panduit | Sub Brand | Superstrut® |
| Item Name | Grounding Busbar Kit | Type | Type RGRB |
| Size | 19 in L | Number of Holes | 20 |
| Material | Copper | Hole Size | 0.2 in |
| Hole Spacing | 0.6 in | Finish | Tin Plated |
| For Use With | 19 in Racks | Includes | (20) 12-24 x 1/2 in Hex Head Screws, (2) Each 12-24 x 1/2 in, M6 x 12 Thread-Forming Screws, and (2) 12 Flat Washer |
| Standards | EIA-310, UL 467 Listed, C22.2 No. 41-13 Certified, RoHS Compliant | Application | NA |
| UPC | 074983660414 |
