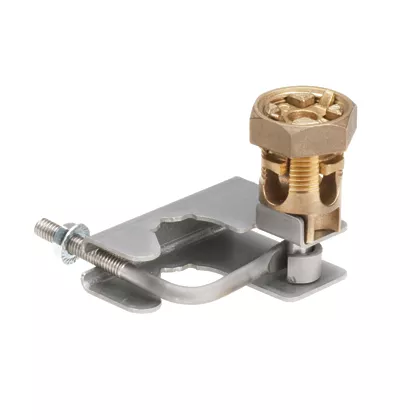

Access floor grounding clamp for 7/8″ square, 1″ round, and 1 1/8″ round pedestals.KEY FEATURES AND BENEFITS:• Bond mesh common bonding network (MCBN) conductors to each other and bond the access floor pedestals to the conductors• Specifically designed to bond perpendicular MCBN conductors per TIA-942 and TIA-607-B• Bond to the pedestal with a single bolt to simplify installation• Accommodate conductors from 6 – 1/0 AWG, minimizes inventory requirements• Bond round and square access floor pedestals for greater flexibility
Specifications
| Brand Name | Panduit | Sub Brand | StructuredGround™ |
| Item Name | Ground Clamp | Type | Ground Clamp |
| Conductor Size | 6-1/0 AWG | Material | Electrolytic Bronze |
| Finish | Zinc-Plated | Standards | TIA-607-B Listed |
| Application | For Round/Flat Conductor | UPC | 074983098460 |
