Technical Specifications
- Connection Type:37 Flare, Tube to SAE-ORB
- Specifications Met:SAE J514
- Maximum Dynamic Pressure:6000 psi
- Shape:45 Elbow
- Connection 1 Size:Male 37 Flare
- Connection 1 Tube Outside Diameter:1/2 inch, 12 mm
- Connection 2 Size:Male SAE-ORB
- Connection 2 Tube Outside Diameter:na
- Connection 2 Thread Size:3/4-16 inch, na
- Connection 3 Size:na
- Connection 3 Tube Outside Diameter:na
- Connection 3 Thread Size:na
- Connection 4 Size:na
- Connection 4 Tube Outside Diameter:na
- O-Ring Material:90 Durometer Nitrile

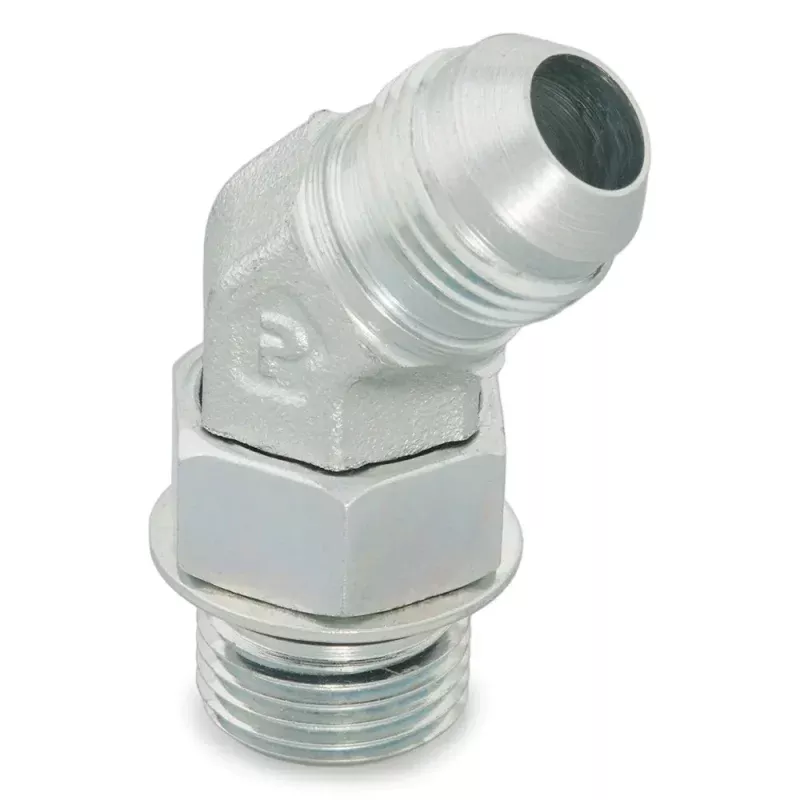

8 V5OX-S – Triple-Lok 37 Flare JIC Tube Fittings and Adapters | Parker NA
