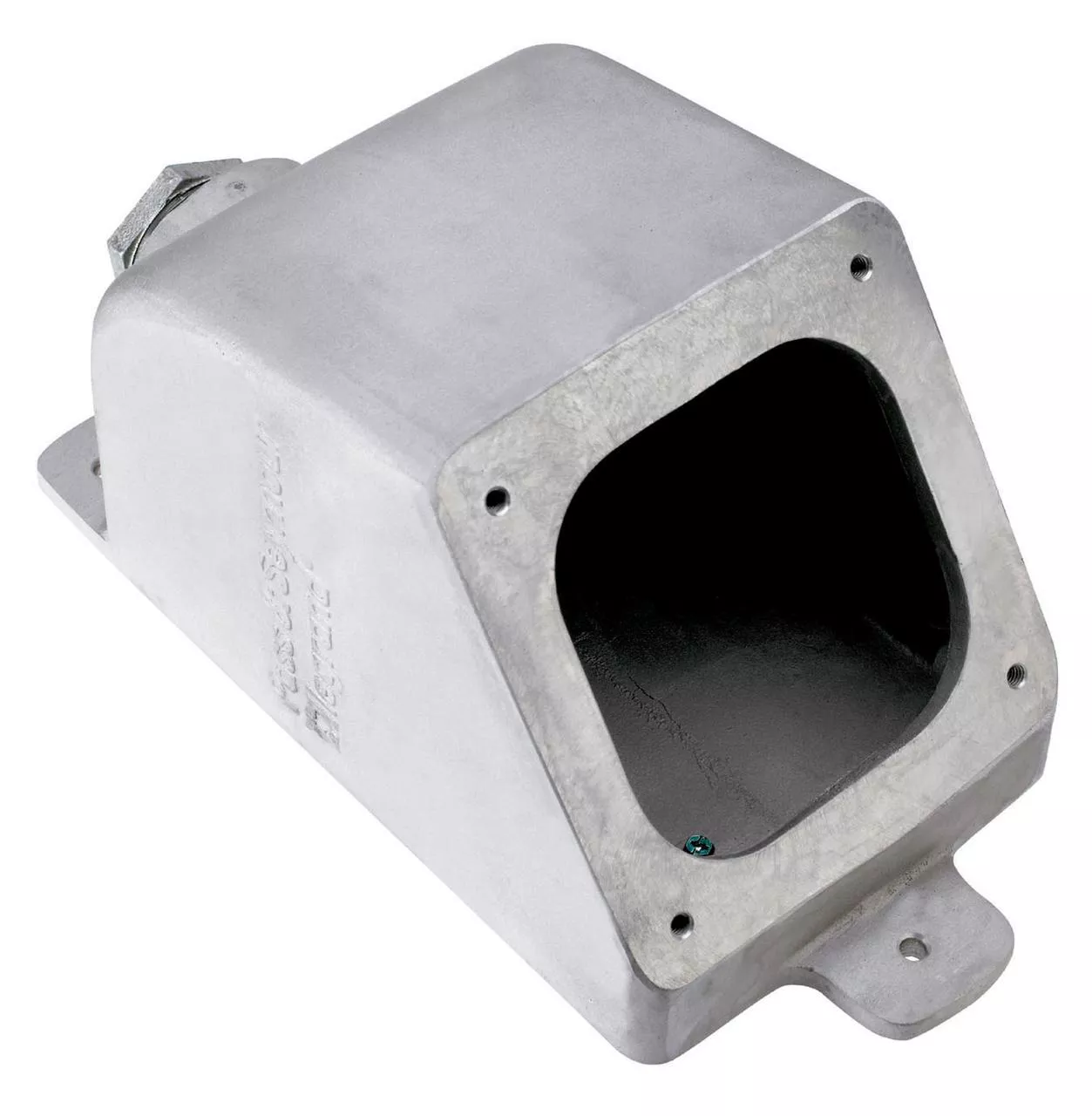

Metallic Back Box with 1 1/2″ Hub Cast for New Style, 100 amp.FEATURES AND BENEFITS: • Easy Installation • No-compromises durability • Height: 6.25″ • Length: 12.50″
Easy Installation
No-compromises durability
Nylon construction for highimpact and corrosion resistance.
Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
Natural-rubber grommets provide watertight protection at cable entry.
Combination-head screws for added convenience and quick installation.
Revolutionary, hinged cord grip for durable performance and ease of installation.
Cover with integral neoprene gasket provides watertight seal.
Specifications
Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour
Item Name
Pin and Sleeve Back Box
Type
3-Pole, 3-Phase, 4-Wire
Length
16 in
Width
6.25 in
Depth
6.25 in
Material
Thermoplastic
Color
Gray
Amperage Rating
100 A
Cable Entry
1-1/2 in Hub Die Cast
Standards
UL 498
Application
For Industrial Use
UPC
785007232288
Packages
