Product Description

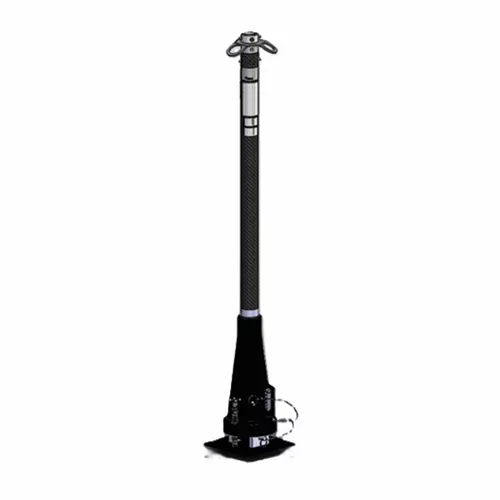

PELSUE FT-C70 FALL UNI-LITE ARREST TOWER, SYNTHETIC NEWFall Arrest TowersThe Uni-Lite fall arrest tower is intended to provide an elevated fall arrest anchorage for up to three persons. The system is composed of a composite tube and cast aluminum base. The upper insert features a 360° swivel tie off for attachment of up to three personal fall arrest systems, when used in conjunction with a 900 lb. MAF (Maximum Arrest Force) fall arrest device. The composite tower is inserted into a cast aluminum base that can be pinned in place to any one of the various base plates [may be used with a number of different weld-on or bolt-on mounting bases (see below). May also be used with the adjustable anchor clamp]. This portable anchorage system can be used on top of transformers and other areas where walking/working surface hazards may be present. Certified as a 3-person fall arrest anchorage as per OSHA Section 1910.66 & ANSI Section A10.14.Base PlatesThe base plates provide multiple attachment options for the various fall arrest towers. Once the base plate is attached, the tower simply pins in place for use. Custom designs available. Call for details.Specifications:Item Description FT-C70 Uni-Lite Fall Arrest TowerFB-SW1 Weld on Base PlateFB-SB1 Bolt on Base PlateFB-BT1Bolt on Base Plate AdapterFB-VA1 Round Base PlateFB-RB1Round Base Plate for stud weldBC-14S Anchor Clamp Base – adjustable TFAT-14C Telescopic Extension FT-C70 Carry Case – Model 122870-001
