Product Description

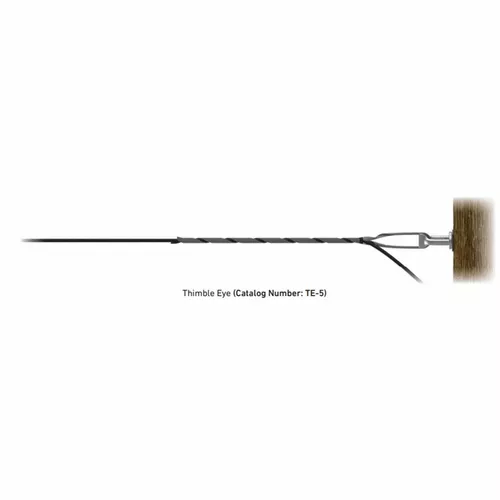

PLP 2875002TE LITE TENS DEAD-END ADSS WITH TE-5.415-.459 *ORDER MINIMUM* 25 NEWPLP 2875002TE LITE TENS DEAD-END ADSS WITH TE-5.415-.459 *ORDER MINIMUM* 25 NEWP/N2875002TE LITE TENSION DEAD-ENDADSS WITH TE-5Cable Diameter Range .0.415 – 0.459(10.6 – 11.6 mm)Color CodeOrangeLength31 inches(0.79 m)Dead-End with Thimble Eye*ORDER MINIMUM* 25The FIBERLIGN Lite Tension Dead-End is a dielectric dead-end designed to terminate short span, low tension ADSS fi ber optic cables in low-voltage environments. Its single-layer component design off ers an economical solution for very light loads. The product eff ectively transfers the low axial load on the cable at the end of the dead-end legs to low uniform radial compression near the dead-end loop.FEATURES AND BENEFITS• Small diameter wires that comprise each dead-end are a mixture of aluminum and aluminum-clad steel that provide superior fatigue strength to ensure long-term performance• Dead-end legs have a pliable latex coating and fl ared rod ends to avoid scoring or abrasion to the cable jacket during and after installation• Dead-end loop will fi t a minimum cable diameter of 1-1/2″ (38.1 mm) and a maximum of 2-1/4″ (57.1 mm)• Designed to fi t over common guy wire dead-end pole fi ttings• Extended dead-end loop reduces the need for an extension link• Optimized compact length that allows for fast and easy installation• Can be used on most brands of ADSS cable that have low strengths and “standard” jackets.
