Product Description

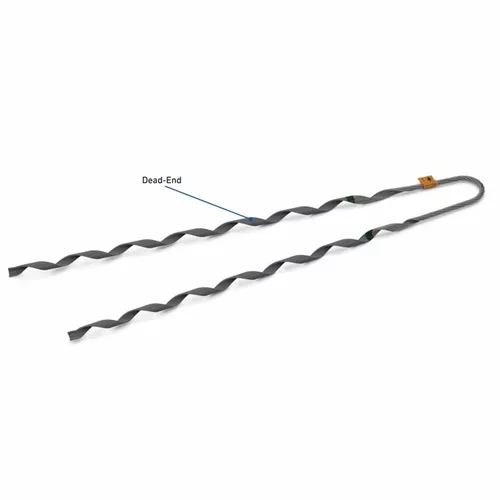

PLP 2875015 LITE TENSION DEAD-END ADSS .342-.374 *ORDER MINIMUM* 25PLP 2875015 LITE TENSION DEAD-END ADSS.342-.374 *ORDER MINIMUM* 25P/N 2875015Preformed Line ProductsLITE TENSION DEAD-END ADSS.342-.374*ORDER MINIMUM* 25The FIBERLIGN Lite Tension Dead-End is a dielectric dead-end designed to terminate short-span, low-tension ADSS fiber optic cables in low-voltage environments. Its single-layer component design offers an economical solution for very light loads. The product effectively transfers the low axial load on the cable at the end of the dead-end legs to low uniform radial compression near the dead-end loop.Small diameter wires that comprise each dead-end are a mixture of aluminum and aluminum-clad steel that provide superior fatigue strength to ensure long-term performanceDead-end legs have a pliable latex coating and flared rod ends to avoid scoring or abrasion to the cable jacket during and after installationDead-end loop will fit a minimum cable diameter of 1-1/2″ (38.1 mm) and a maximum of 2-1/4″ (57.1 mm)Designed to fit over common guy wire dead-end pole fittings • Extended dead-end loop reduces the need for an extension link • Optimized compact length that allows for fast and easy installationCan be used on most brands of ADSS cable that have low strengths and “standard” jackets
