Product Description

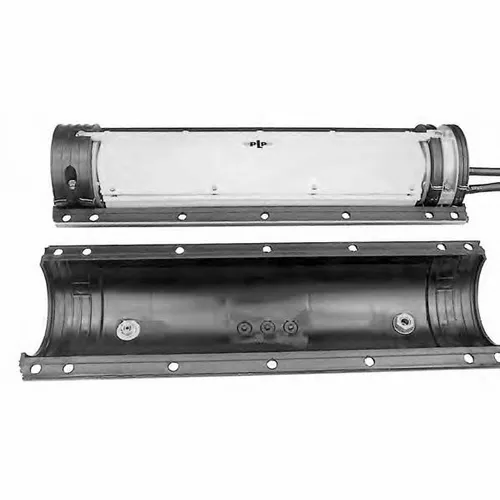

Preformed Line Products 80010036.5″ x 28″ (165 x 711) FIBERLIGN Fiber Safe for butt splice applications. Includes: One Two-Section End Plate and one Three-Section End Plate.The Encapsulated, Re-enterableClosure AssemblyThe FIBERLIGN® Fiber Safe is designed for protectingunderground, buried and aerial fiber optic splices. Moreversatile and flexible than other fiber optic closures, theFIBERLIGN Fiber Safe incorporates a closure within aclosure for double protection. The FIBERLIGN Fiber Safecan accommodate butt splice applications or in-lineconfigurations using various End Plate and Splice CaseDesign Features:Butt Splice ApplicationsThe FIBERLIGN Fiber Safe utilizes a preassembled 6.5″(165 mm) End Plate and a variety of cable entry End Platesfor butt entry applications. 28″ (711 mm) Splice Case shellsare provided for these applications.In-line Splice ApplicationsFor in-line configurations, the FIBERLIGN Fiber Safe isdesigned with two 6.5″ (165 mm) Three-Section End Platesand 38″ (975 mm) Splice Case shells are provided.Cable Entry End PlatesA variety of cable entry End Plates are available whichprovide simple cable entry for both initial constructionand future entry. External bonding capability is providedthroughout.Splice TraysThe FIBERLIGN Fiber Safe accommodates 6 splice traysholding 12 or 18 splices per tray. An expanded capacityclosure is available for butt splice applications which utilizesup to 6 splice trays holding 24 splices per tray (Cat.No.: 8001004). Splice trays are available for both fusionand mechanical splices.Vertical FilingThe PREFORMED™ vertical file system allows trays tobe individually removed, easily reworked and securelyrepositioned. The snap-on lid assures additional protectionto each tray.Expressing FibersProvisions are made for expressing uncut fibers throughthe inner closure.LOCKBAR™ FasteningThe LOCKBAR System utilizes front and back bars that fitinto the flange on both the Splice Case and the inner closureassembly. With factory-assembled nuts and bolts andspecial sizing, no special tools are needed for a fast,dependable closure. The dual closure system is designedto assure maximum system integrity, with outstandingaccessibility and ease of re-entry.Protective CollarAn innovative collar attaches to the End Plate inside theclosure which provides an additional watertight seal andacts as a substrate to which resin will bond.combinations. Re-enterable encapsulant fills the void betweenthe inner closure and outer Splice Case assembly toprovide an additional barrier against moisture. The FIBERLIGNFiber Safe is easily re-enterable. Unique LOCKBAR™Fastening allows rapid re-entry for system additions. Theclosure is filled and refilled through an exterior port in theSplice Case.
