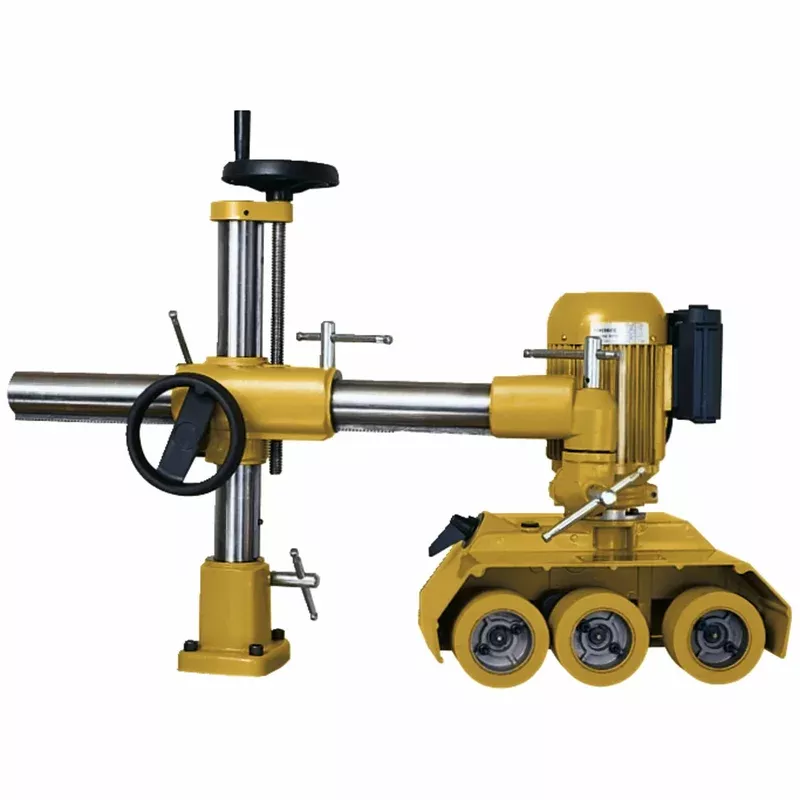

This rugged, heavy-duty Powermatic stock feeder (Model PF-33) features a continuous-duty motor that transfers power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.
Features:Roller chain and sprockets provide positive feeding for a variety of workSupport column is fully adjustable for horizontal, vertical or angled feeder positionFeeder body, column base and joints are cast iron for heavy duty operationRollers can be changed out easily and quicklyColumn Diameter (in) : 2.28Distance Between Rollers – Center to Center (in) : 5.07 – 5.90Feed Rate (FPM) : variableHeight (in) : 29.5Length (in) : 43.23Maximum Height of Rollers Parallel to Tabletop (in) : 8.45Model Number : PF-33Motor HP : 1HPMotor Phase : 3PhMotor Voltage : 230VMovement – Horizontal (in) : 18.07Movement – Vertical (in) : 9.83Net Weight : 134 poundNumber of Speeds : 4 speedsOverall Dimensions : 43.23 x 18.08 x 29.5Part Number : 1790800KRange of Speeds (FPM) : 13, 26, 33, 66 FPMRollers (in) : 4-3/4 dia x 2-1/4 wideRotation (Forward/Reverse) : Forward/ReverseSwing (deg.) : 360Width (in) : 18.08
