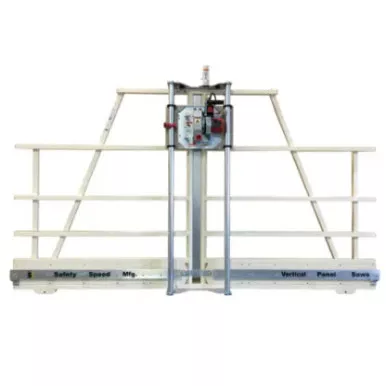

Featuring a 10′ frame, and 50″maximum crosscut with an unlimited rip cut, this panel saw is a preferred solution for cutting 4′ X 8′ sheets of plywood. The H4 panel saw cuts within 1/32″ on a wide variety of panel materials up to 1¾” thick.
Standard Equipment
- 3 ¼ Hp, 15 amp industrial duty saw motor.
- Zinc plated 1 ¾”steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
