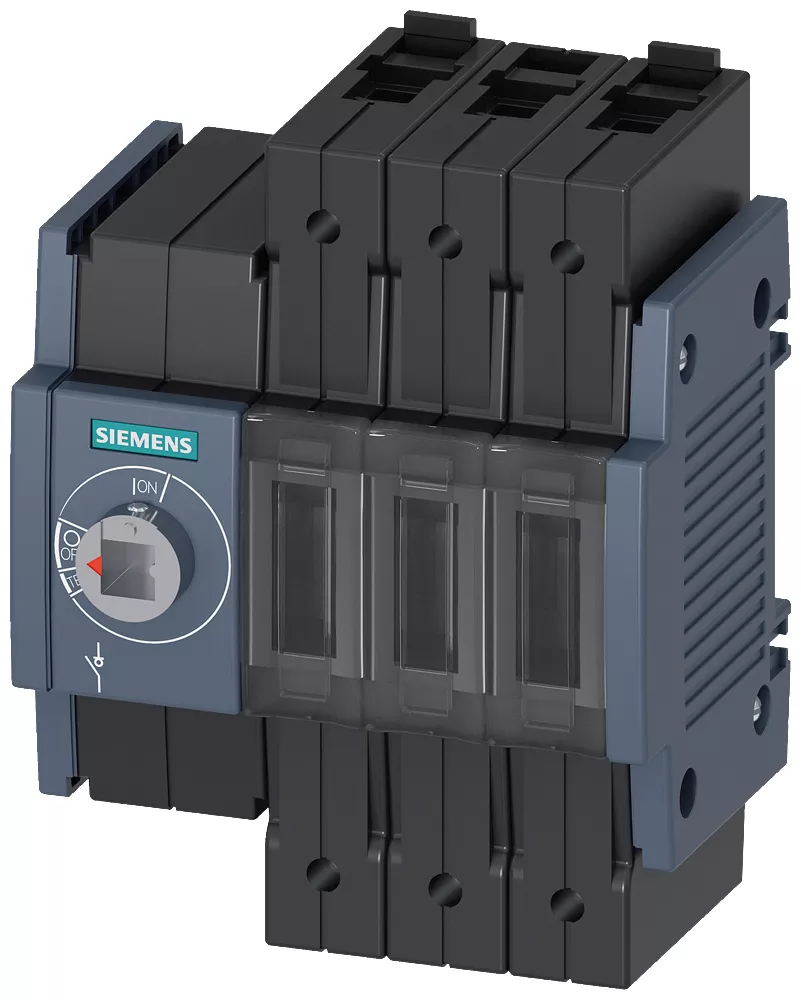

Switch disconnector 100 A, size 1, 3-pole, front operating mechanism on left,…
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Item Name | Switch Disconnector | Voltage Rating | 440 V |
| Amperage Rating | 100 A | Number of Poles | 3 |
| Connection Type | Screw | Frequency Rating | 50/60 Hz |
| Mounting Type | 35 mm DIN Rail | Degree of Protection | IP20 |
| Temperature Rating | -25 to 70 °C | Dimensions | 94 mm W x 68 mm D x 119 mm H |
| Standards | CCC Certified, DVE, EAC, CE Certified, Lloyd’s Register, UKCA |
