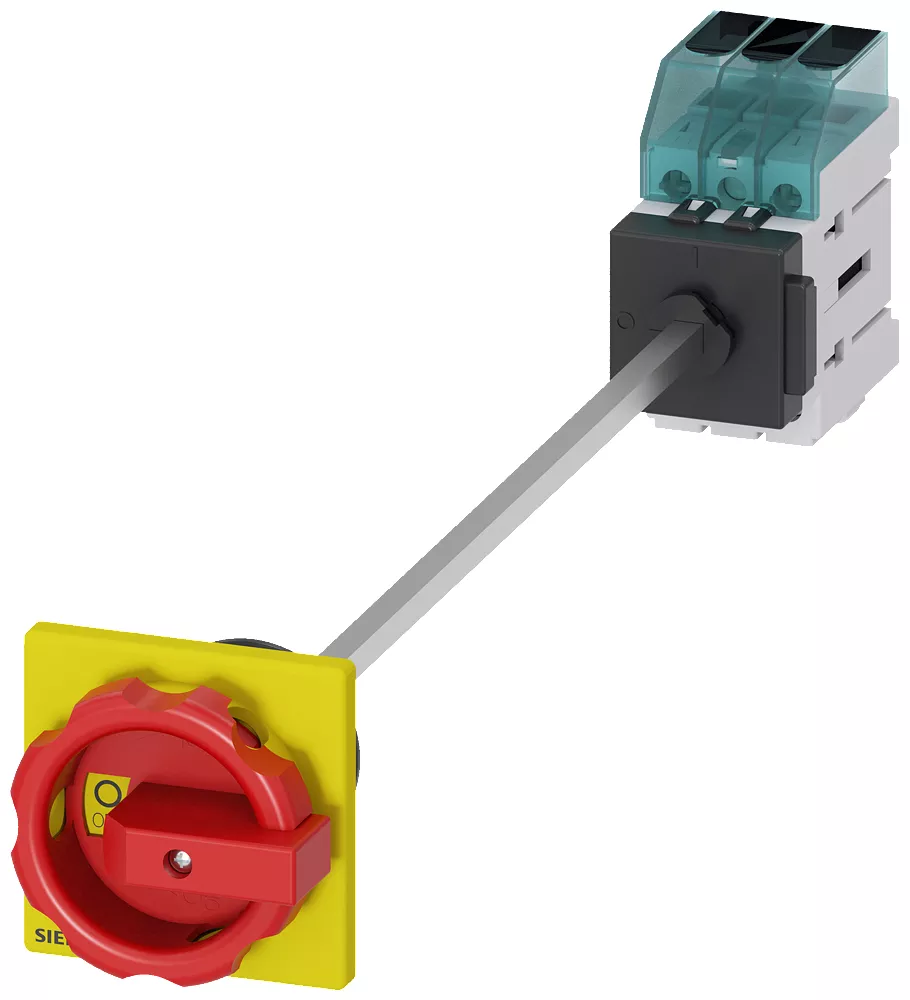

Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW floor mounting Basic switch with door coupling Central hole mounting 22.5mm Rotary actuator red / yellow 66 x 66 mm
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Item Name | Switch Disconnector | Voltage Rating | 690 V |
| Amperage Rating | 63 A | Number of Poles | 3 |
| Frequency Rating | 50/60 Hz | Mounting Type | Front, Rail |
| Degree of Protection | IP65 | NEMA Rating | NEMA 1, 3R, 4X, 12 |
| Temperature Rating | -25 to 55 °C | Dimensions | 36 mm W x 380 mm D x 60 mm H |
| Standards | CCC Certified, CE Certified, EAC, UKCA, UL Listed | UPC | 195125098541 |
