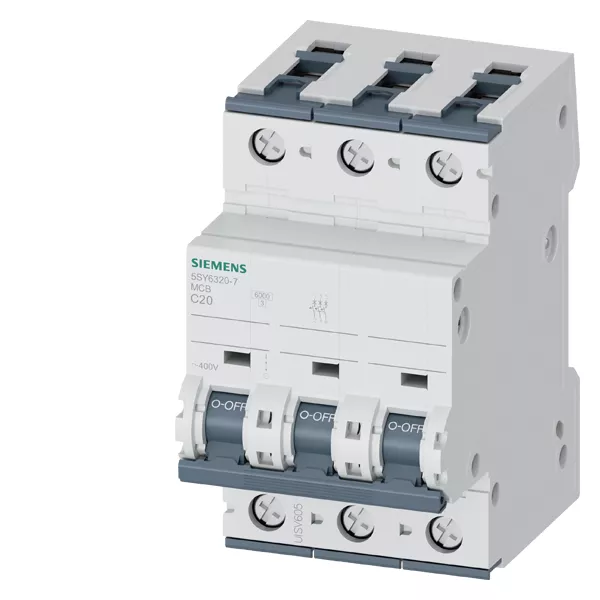

Type 5SY6 Miniature Circuit Breaker, 3 Poles, 480/277V, 20A, 5kA, standard frame, Magnetic trip point 5 to 10 In
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Item Name | Miniature Circuit Breaker | Type | Miniature Push Button Box |
| Number of Poles | 3 | Interrupt Rating | 5 kA |
| Amperage Rating | 20 A | Voltage Rating | 480 V |
| Terminal Connection | Line and Load Side Wire Screw | Mounting Type | 35 mm DIN Rail |
| Frequency Rating | 50 Hz | Trip Type | C-Curve, Thermal Magnetic |
| Standards | CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2, UL 1077 | Application | For Supplementary Protection |
| UPC | 754554965963 |
