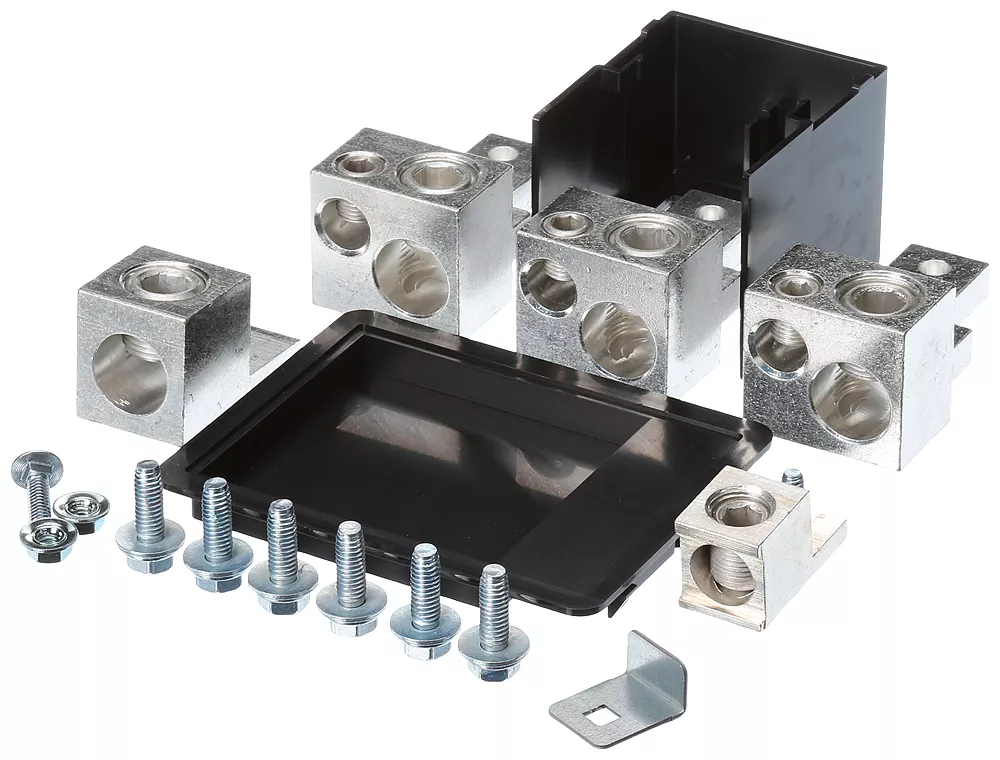

Aluminum (Main or Feed-Thru) Lug kit for revised P1 interior panelboard. Suitable for 3-Phase system rated (400A). Wire range: two 1/0 – 250 kcmil or one No.2 AWG – 600 kcmil (CU/AL). Not suitable for use with Original P1 panels produced before January 2015.
Specifications
| Brand Name | Siemens | Sub Brand | Panelboards |
| Item Name | Field Installable Kit | Type | Fieldinstallablekit |
| Amperage Rating | 400 A | Phase | 3 |
| Conductor Size | 2-600 kcmil | Standards | CSA C22.2 No.29 |
| Application | LightingPanelAccessories | UPC | 887621580841 |
