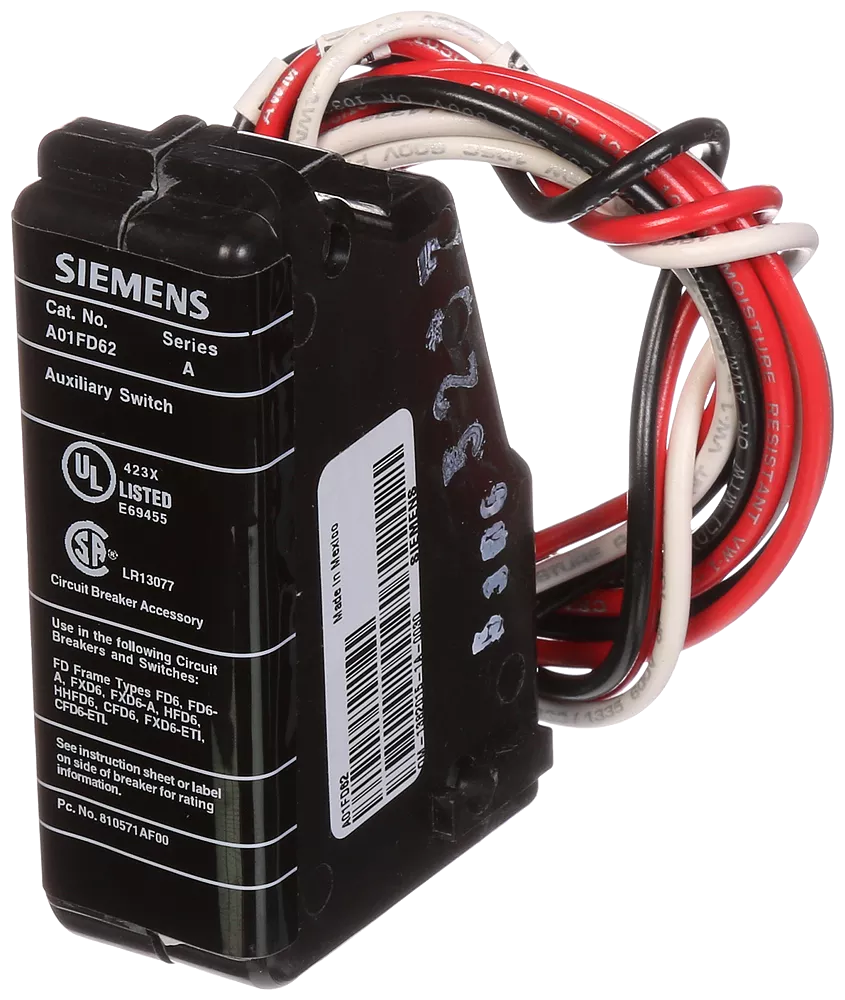

240 V AC VOLTAGE; 250 V DC VOLTAGE; CONTACT CONFIGURATION 1NO-1NC; 250 AMPERE FD FRAME MOLDED CASE CIRCUIT BREAKER
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Item Name | Auxiliary Switch | Voltage Rating | 240 VAC/250 VDC |
| Type | N/A | Amperage Rating | 250 A |
| Frequency Rating | 50/60 Hz | Contact Form | 1 NO, 1 NC |
| Dimensions | 4.80 in L x 10.8 in W x 20.3 in H | Temperature Rating | 40 °C |
| For Use With | 250 A FD Frame Molded Case Circuit Breaker | Standards | CSA Certified, UL Listed |
| Application | 3SB Accessory | UPC | 783643212398 |
