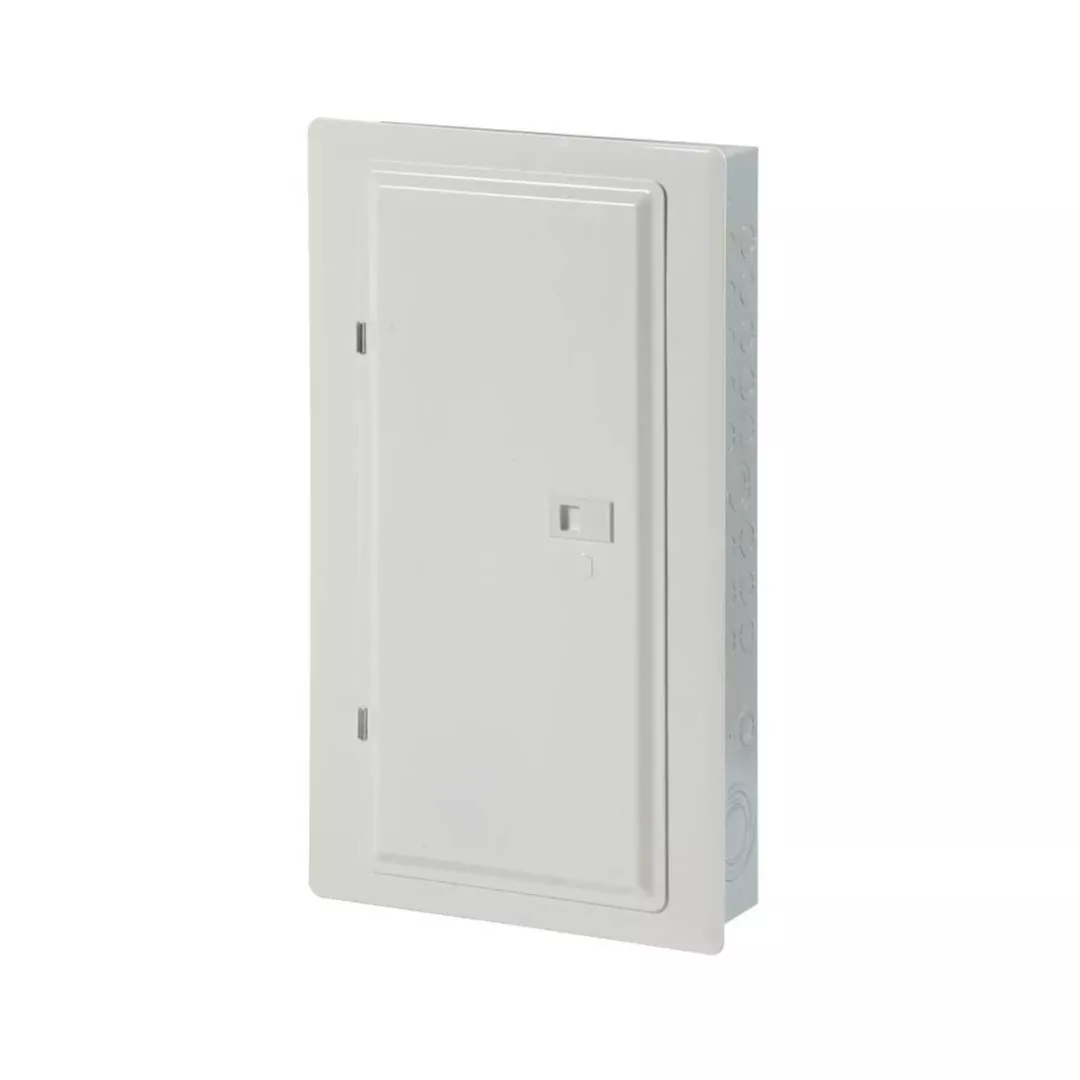

EQL, MLO, 8 Circuits, 100A, 1PH 3W, 120/240V, Type 1, Aluminium, Door, White
Specifications
| Brand Name | Siemens | Sub Brand | Loadcentres |
| Item Name | Load Centers with White Door | Type | EQL |
| Number of Circuits | 8 | Number of Spaces | 8/16 |
| Voltage Rating | 240 VAC | Amperage Rating | 100 A |
| Interrupt Rating | 10 kA | Phase | 1 |
| Mounting Type | Combination | Enclosure Type | Type 1 Indoor |
| Size | 12 in W x 3.8 in D x 14.9 in H | Bus Rating | 100 A |
| Wiring Configuration | 3 Wire | Conductor Size | 4-2/0 AWG |
| Frequency Rating | 60 Hz | Application | For Residential Use |
| UPC | 662862571588 |
