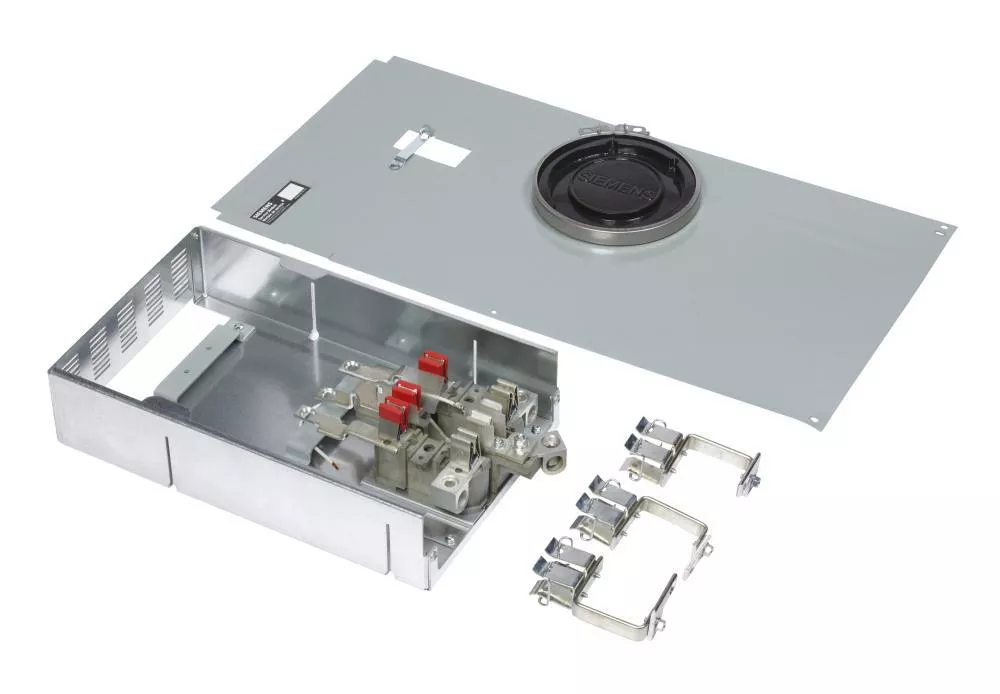

Offering the maximum versatility to meet all your needs, Siemens 240V meter centres are designed for single phase three wire 120/240V AC or three phase four wire 120/208V AC applications with sub-service modules of 100A, 125A and 200A. Siemens 240V meter centres are designed to meet CSA requirements C22.2 No.229 and are CSA certified under file 13069. All individual metering stacks are manufactured to tight specifications and can be selected in pre-assembled units, to minimize on-site labour or as a separate plug-in module for a customized installation when required. The modular construction offers real post installation flexibility permitting on-site changes to be made with minimum down time.
Specifications
| Brand Name | Siemens | Sub Brand | Meter Centres |
| Item Name | Meter Socket Module | Wire Size | (1) 6 AWG – 250 kcmil |
| Amperage Rating | 200 A | Voltage Rating | 120/208 V |
| Phase | 3 | Number of Jaws | 7 |
| Wattage | 3 W | Dimensions | 356 mm W x 1981 mm H |
| Standards | CSA C22.2 No. 229 Certified File 13069 | UPC | 662862135254 |
