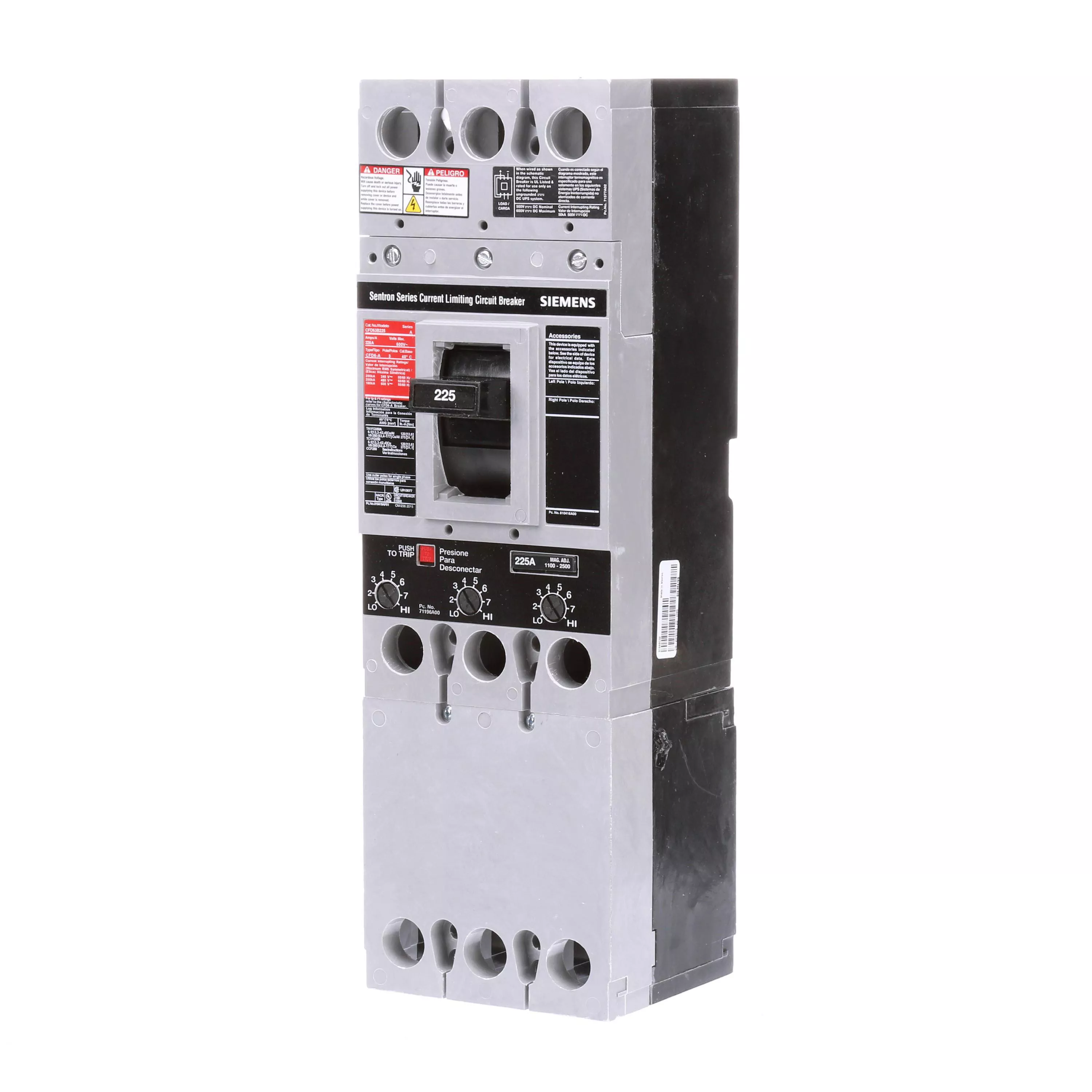

Molded case circuitFCL (fuseless current limiting) breakers for ED125A frame sentron mounting in 1 type of trippingspeedCED6=100KA. Available in version 2 pole 250vdc/600vac, 3 poles 500vdc/600vac.
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Item Name | Molded Case Circuit Breaker | Type | Type CFD6, Current Limiting |
| Number of Poles | 3 | Interrupt Rating | 100 kA |
| Amperage Rating | 225 A | Voltage Rating | 600 VAC or 500 VDC |
| Trip Range | 1100 – 2500 A | Frequency Rating | 50/60 Hz |
| Actuator | Varying | Auxiliary Contacts | N/A |
| Frame | FD | Trip Type | Thermal Magnetic |
| Temperature Rating | 40 °C | Dimensions | 7.8 in L x 7.3 in W x 16.9 in H |
| Standards | UL/HACR Listed | Application | For Standard 40C Breaker |
| UPC | 783643212206 |
