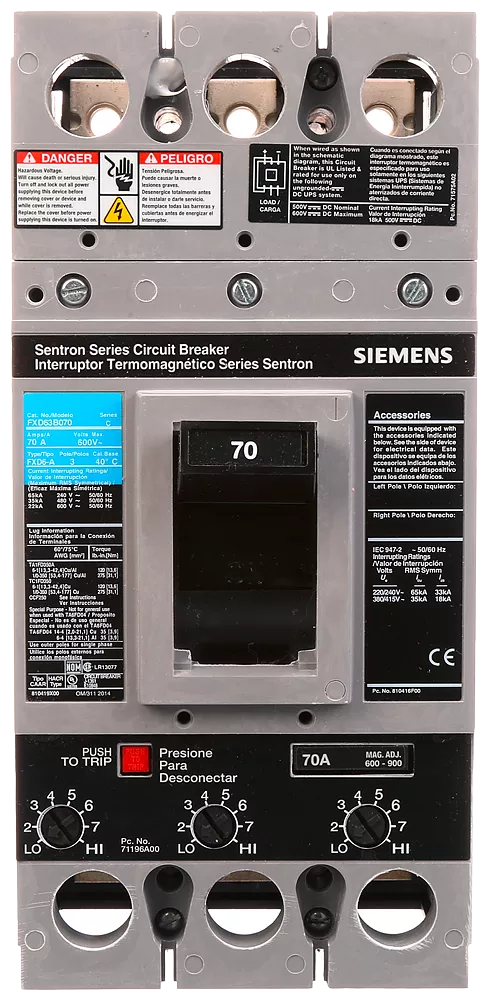

Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 70A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Type | FXD6, Standard | Number of Poles | 3 |
| Interrupt Rating | 22 kAIC | Voltage Rating | 600 V |
| Trip Range | 600-900 | Frequency Rating | 50/60 Hz |
| Actuator | Varying | Auxiliary Contacts | N/A |
| Frame | FD | Trip Type | Thermal Magnetic |
| Standards | HACR | Application | For Motor Starting Without Overload Protection |
| UPC | 783643211193 |
