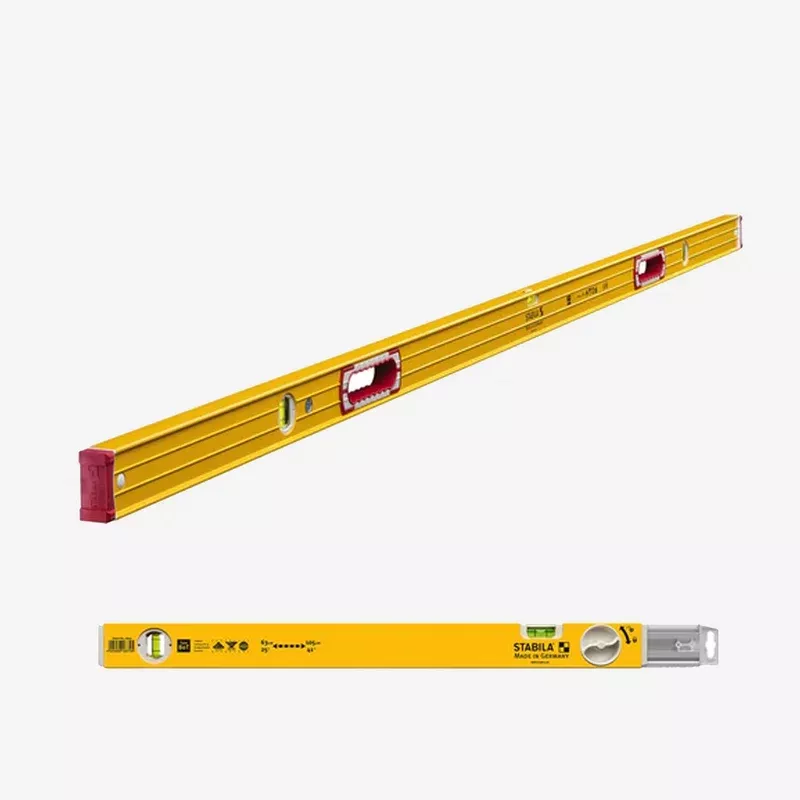

Type 196/80T 2 level jamber setIncludes:
Type 196 Heavy Duty 78″ LevelType 80T Extendable Level, 24″-40″
78″ Type 196 level is a heavy-duty profile designed to fit in a standard 80″ door opening. This allows a contractor to plumb down the jamb legs and eliminate bows in the door frame.For the header level Stabila has added the redesigned 24-40″ Type 80 T Extendable Level to the non-magnetic Jamber Set.Every level is electronically adjusted, then accuracy inspected and certified.Vials read the same in all positionsSTABILA levels are unparalleled with regard to their accuracy and dependability.The vials are made of block acrylic glass and firmly epoxy-locked in the frame.Bright easy to read vials will not leak, break, fog or require re-calibrationLevel accuracy guaranteed for life
78″ Type 196 Heavy Duty LevelFeatures a double bridged center vialRib-reinforced frame for high strength and light weight. Frame will not warp or twist.Rubberized hand grips for comfort and gripShock-absorbing removable endcaps: Prevent slipping on walls and marking walls. Endcaps can be removed to carry pencil lines tight into corners.Large l hang hole to store the level up and off of the work surfaceElectrostatic enamel finish: baked on tough, cleans up with water and brush
24 – 40″ Type 80T Extendable LevelExtend the length of the level – Just pull out to the length needed and lock it firmly into positionAs you extend the level, the marking and cutting edge is continuous along entire length – measure and mark with no interruptionsThe measuring surface is precision machinedThere are printed scales on the level’s topside for accurate layout and quick set upsA manual lock system tightens the entire system up when you are in position. Click and go.Red rubber feet on the backside of the level properly grip the wall you are working against. The level will not slip or leave scratches.High-quality extension mechanism delivers precision – in normal position: closed, your accuracy tolerance will not exceed 1/32in over 72 inchesExtended your tolerance will not exceed 1/16in over 72 inchesEquipment: 1 horizontal vial, 1 plumb vial, 1 measuring surface, extendable system, 1 continuous marking and cutting edge, 1 printed metric scale
Tech. Data:78″ Type 196Measurement accuracy in normal position: +/- 1/32in @ 72inMeasurement accuracy in reverse position: +/- 1/32in @ 72inNumber of measuring surfaces: 2Profile: Rectangular profile with ribsEnd caps: Removable / Wall Grips / Shock Absorbing
24-40″ Type 80TMeasurement accuracy in normal position: +/- 1/32in @ 72inMeasurement accuracy in reverse position: +/- 3/64in @ 72inMeasurement accuracy in extended normal position: +/- 1/16in @ 60inMeasurement accuracy in extended reverse position: +/- 1/16in @ 60inNumber of measuring surfaces: 2Profile: Rectangular profile with ribsEnd caps: Standard
