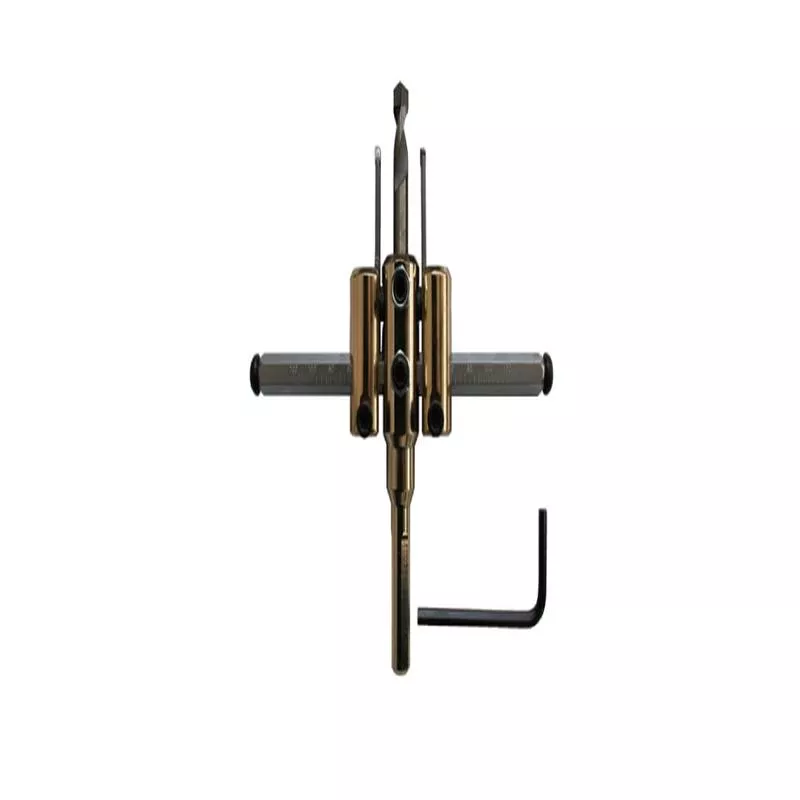

USE
For drilling a hole for pipe and duct in Gypsum and Hard Cement Board
FEATURES
- Range in size 30mm to 120mm.
- With the use of Long Bar 200mm as an optional attachment, drilling 200mm diameter is available.
- Smooth and speed work by twin-blades.
Specifications
| Usage | Gypsum and Hard Cement Board |
|---|---|
| Material(s) | BodyHigh Carbon SteelCenter DrillHigh Carbon Steel with T.C.T.Replaceable BladeDiamond |
| Capacity | Bar Length 120mmHole sizes 30mm-120mmBar Length 200mmHole sizes 30mm-200mmApplicable depthSingle face25mm / Both face 50mm |
| Recommended tool(s) | Electric Power Drill |
| RPm | Bar Length 120mmLess than 1,500rpmBar Length 200mmLess than 600rpm |
| Shank Shape | Three Flats |
| Caution |
|
Sizes
Shank Shaped Unitmm
| Product No. | Name | Size | Shank Shape |
|---|---|---|---|
| 36D | Set | 30X120 | 10 |
| 36DL | Set with 200mm Bar | 30X200 | 10 |
QTY(Inner Box)6pcs
Assembly
Replaceable Blade
| Product No. | Description |
|---|---|
| 36D-K | 2pcs Set |
QTY(Inner Box)6pcs Shared use of replaceable blade forNo.5010D.
Center Drill
SizeDOverall LengthLSpiral LengthSLShank ShapedUnitmm
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 36D-CD | 8 | 60 | 30 | 8 |
Shared use of replaceable center drill forNo.5010D.
BarLong Bar
Unitmm
| Product No. | Name | Size | Thickness |
|---|---|---|---|
| 36D-B120 | Bar | 120 | 9 |
| 36D-B200 | Long Bar | 200 | 9 |
Exclusive bars for No.36D and No.36DL. Cannot be shared with other Adjustable Circle Cutter.Bar includes Safety Stopper.
Other Assembly
Unitmm
| Product No. | Name | Size |
|---|---|---|
| 36D-OP1 | Center Drill set screw | 8X12 |
| 36D-OP2 | Bar set screw | 8X12 |
| 36D-OP3 | Holder set screw1pc | 5X15 |
| 36D-OP4 | Replaceable Blade set screw1pc | 5X10 |
| 36D-OP5 | Safety Stopper1pc | 6X6 |
| 36D-OP6 | Hex Wrench | 4 |
| 36D-OP7 | Main Shaft 1 | – |
| 36D-OP8 | Holder without Replaceable Blade 2 | Left |
| 36D-OP9 | Holder without Replaceable Blade 2 | Right |
1Main Shaft36D-OP7includes the Center Drill set screw36D-OP1and Bar set screw36D-OP2.2Holder without Replaceable Blade36D-OP836D-OP9includes Holder set screw36D-OP3and Replaceable Blade set screw36D-OP4.
Bits of knowledge
- Drilling into the Kitchen panel is available, but just before the drilling will be finished, lower the rotation speed and drilling softly. It may break the Kitchen panel if you do the drilling strongly.
