Product Description

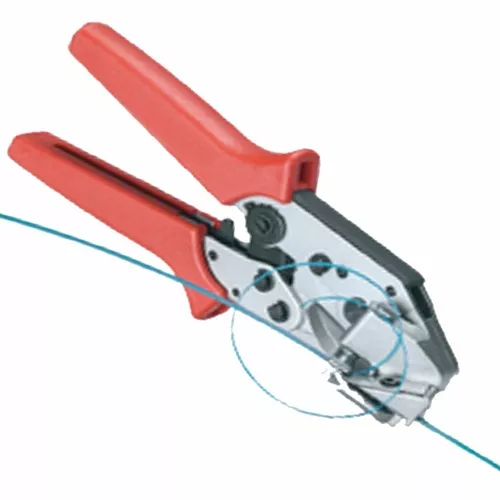

Sumitomo BTS-TP1 Buffer Tube Access Tool New Buffer Tube Access ToolBuffer Tube ShaverThe multi-fiber buffer tube is gripped between the jaws of the tool and led through the tool’s guide groove. When the tool is pulled, the specially ground knives cut through the sheath, shaving off a section of it without damaging the fibers within.Depending on requirement, 2 types of cut can be made:1. Removing either a mid or end section of the sheath in order to expose the fibres.A required length of section is shaved off and separated at the end using an optical fiber side cutter. The remaining sheath is then cut through at both ends once the fibers have been removed.2. Opening a section of the sheath in order to gain access to the fibres.The window cutting technique isused for this, the main part of the sheath remaining intact to provide stability. To do this, only two sections are opened, both approx. 5 cm long. In one section, they are pulled out using a spatula. Use special mouldings to close the cut sites.FeaturesOpens multifiber buffers without cutting fibersReduces splices when creating branchesSimple longitudinal cutNo damage to optical fibersErgonomic design for easy handling.Saves time and moneyAny length of cutEasy to handleDurableBTS-TP1 Buffer Tube Shaver (Mid-span Access Tool)
