Product Description

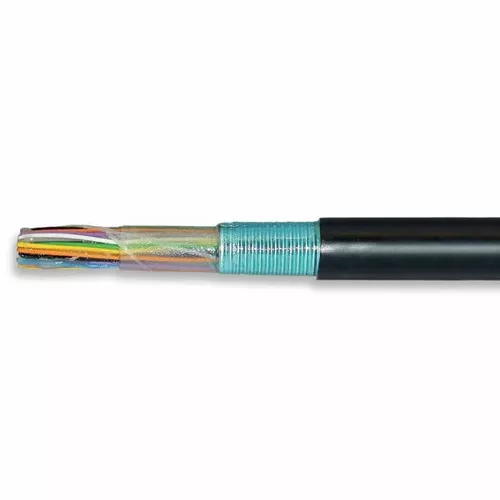

Product DescriptionSEALPIC?FSF Cables are designed for low risk direct burial or ductapplications where protection from moisture is required and aluminumshielding is desired. SEALPIC-FSF may be used aerially, but must beattached to a support strand.Applications Low risk direct burial Underground conduit Lashed aerialFeatures Benefits Twisted into pairs with varyinglay lengths Minimizes crosstalk Core wrapProvides thermal protection Filled coreMoisture resistant Fully flooded shield interfacesInhibits corrosionand water migration Black, polyethylene jacketProvides a tough, protectivecovering designed to withstandexposure to direct sunlight,atmospheric temperaturechanges and stresses expectedin standard installationsSpecificationsConductor Solid annealed copperInsulationDual insulation consisting of an inner layer of foamed, naturalpolyolefin over which is applied a solid (skin) layer ofpolyolefin colored in accordance with industry standardsTwisted PairsIndividual insulated conductors; twisted into pairs withvarying lay lengths; specific color combinations providepair identification. 25-Pair Core Pairs are assembled into a cylindrical core> 25-Pair CoreCables larger than 25-pair are assembled into units,which are then used to assemble the core; unitsare identifiable using color-coded bindersFilling Compound 80亱C ETPR compound, completely filling the intersticesbetween the pairs and under the core wrapCore Wrap Non-hygroscopic, dielectric tape applied over the coreShield Corrugated, copolymer coated, 8 mil aluminum tape appliedlongitudinally with an overlap; flooded shield interfacesJacket Black, polyethyleneJacket MarkingIdentifying information includes a telephone handset,cable code, pair count, AWG, date of manufactureand sequential length markings at 2 foot intervalsStandards ComplianceANSI/ICEA S-84-608-2007RDUP 7 CFR 1755.890 (PE-89)RoHS-compliant
