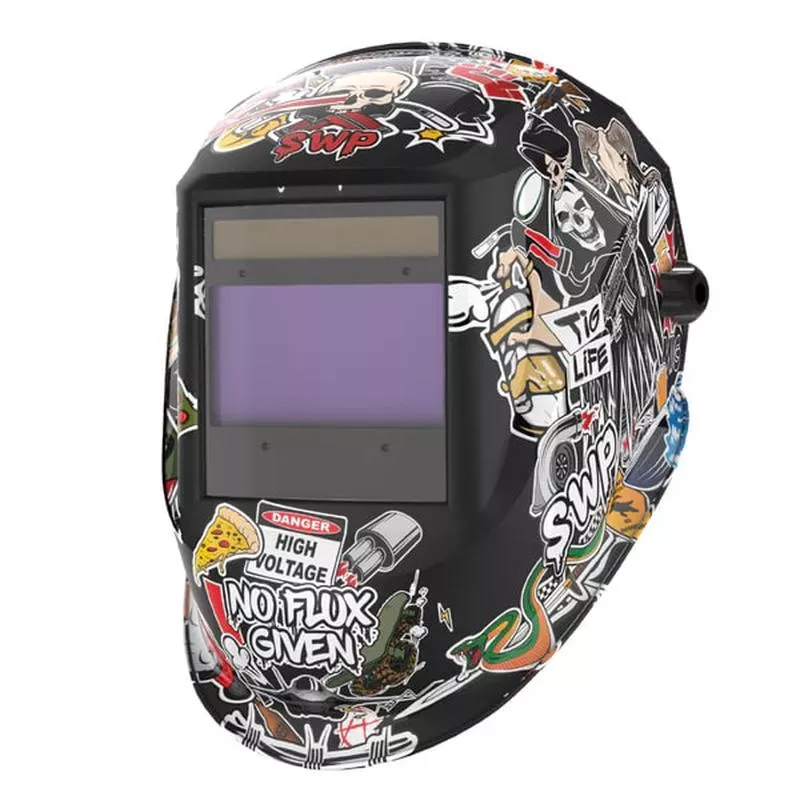

The SWP 3148 Chaos Variable Shade 9/13 Welding & Grinding Helmet offers medium range welding vision, ideal for TIG and Plasma Welding.
With variable shading and fully adjustable sensitivity and delay features, it maximizes ADF filter and provides state-of-the-art shade 4 protection through new generation true colour technology. CE classified 1/1/1/2 for all types of welding.
Key Features of the SWP 3148 Chaos Variable Shade 9/13 Welding & Grinding Helmet:
- Medium range welding vision
- Working from 3 amps ideal for TIG and Plasma Welding
- Variable shading to maximise the ADF filter and protection
- State shade 4 due to the new generation true colour technology
- Auto and manual shade settings
- Fully adjustable sensitivity and delay optimises setting for all types of welding in MIG, TIG and Plasma
- CE Classification: 1/1/1/2
Technical Specifications of the SWP 3148 Chaos Variable Shade 9/13 Welding & Grinding Helmet:
Filter Dimensions: 114mm x 133mm x 9.5mm
Viewing Area: 100mm x 83.4mm
CE Classification: 1/1/1/2
Sensors: 4
Auto Shade: Yes
Light Shade: 4
Dark State: Variable shade 5-9/9-13
Shade Control: Internal
Switching Time: 0.04ms(ANSI)
Sensitivity Control: Adjustable (Internal, Digital)
Delay Time Control: Adjustable 0.1-0.9S
Grinding Function: YesDigital Control
Low Battery Warning Indicator: Yes
Operation Temperature: -10C -65C
Storing Temperature: -20C-85C
Power Supply: Solar Cell, Replaceable Battery 1 x CR2450
Inner Protection Lens: PL-5003
Minimum TIG Welding Current:>3A
Maximum TIG Welding Current: 350A
