Product Description

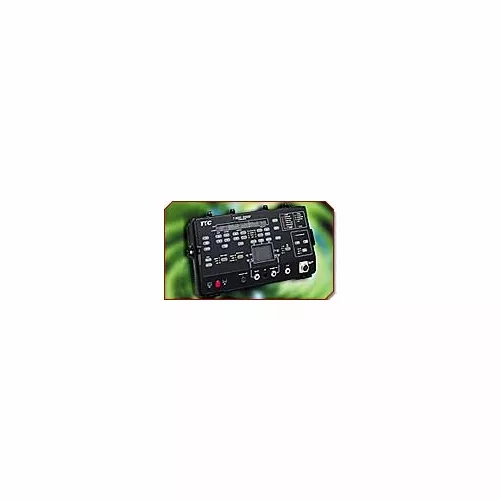

ACTERNA/JDSU/TTC TELCOM T-BERD 209OSP T1 TEST REPAIREDT-BERD 209OSP T-Carrier AnalyzerTTC’s T-BERD 209OSP is the first test instrument designed specifically to meet the special requirements of the outside plant technician. With the unique combination of BERT and cable qualification measurements, you can completely qualify T1, HDSL, ISDN, and DDS circuits with one test set. The T-BERD 209OSP has everything you need for qualifying and troubleshooting digital loops. Its rugged, water-resistant enclosure allows you to meet customer deadlines in the worst weather conditions. The T-BERD 209OSP is the only test instrument you’ll need.HighlightsThoroughly test T1, HDSL, ISDN, and DDS circuits with a waterproof, portable instrumentDetect cable faults with internal TDR and DC MeasurementsPerform complete stress pattern testing to qualify circuits and identify line impairments with the automated BRIDGTAP™ and MULTIPAT™ patternsKeep the harsh elements out and the unit working with the rugged, NEMA-4X-compliant designComplete field software upgrade in minutesArchitecture Especially Designed for the Outside Plant TechnicianRugged, Water-resistant EnclosureNEMA-4X-compliant Design Complete Field Upgrades in MinutesFeatures Comprehensive Digital Loop Troubleshooting and QualificationTests T1, HDSL, ISDN, and DDS circuits DC and TDR Measurement Cable Fault Detection BERT with the HDSL Doubler Power Supply Complete Stress Pattern Testing Wideband Tones Span PoweringRelated Products T-BERD HDSL Doubler Power Supply for TTC’s T-BERD® 209OSP TTC 350+ DSLTest Set TTC 350E Plus DSLTest Set 2357 DSL Broadband Service Module for the TTC 2000 Test Pad T-BERD 209OSP T-Carrier Analyzer – Product InformationOptions209OSP-1DC Measurements Option Quickly identify problems with automated resistance, current, and voltage measurements.209OSP-2TDR Measurements OptionIdentify cable impairments such as bridged taps, opens, shorts, load coils, splits, crimps, partial opens, and distances to the faults.209OSP-3Channel Monitor OptionSimultaneously monitor ABCD signaling bits of all 24 timeslots.209OSP-4Advanced Stress Patterns Option Stress repeater ALBO circuits with 55 OCTET, T1 DALY and other long user patterns as recommended by the ANSI T1.403 standard.209OSP-5Enhanced ESF Option Decode ESF one-second broadcast PRM to verify remote, in-service circuit performance. Query performance monitoring NIU equipment and retrieve in-service performance data.209OSP-6Smart Loopback/Command Codes Option Send and receive commands for maintenance switch operation. Utilize intelligent repeater technology to qualify and isolate troubles.209OSP-7Fractional T1 Option Perform bit error rate tests on selected channels to verify transmission quality on contiguous and non-contiguous FT1 bandwidth.209OSP-8HDSL/ISDN/DDS Measurement Option Perform loss measurements at 28kHz, 40kHz, 48kHz, 82kHz, 163kHz, 196kHz, and 392kHz. Ensure that the local loop meets CSA Requirements.209OSP-9ISDN/DDS Analyzer OptionPerform full span DDS BERTand ISDN Bert. Other features include span power for ISDN and DDS repeaters and pre-programmed loopcodes for repeaters, CSU, and NT1.209OSP-96DLC/DS0 Analyzer Option Decode signaling bits in both directions on all channels simultaneously with full duplex channel monitor. Other features include channel insert capabilities, SLC-96 Datalink monitor and emulation, two-wire VF input/output, and SLC-96 Mode 2 configuration timeslot assignment results.Product InformationModel No.DescriptionTB 209OSPT-BERD T-Carrier Analyzer41084 T-BERD Repeater Power Supply41754T-BERD Repeater Adapter44116T-BERD HDSL Doubler Power Supply
