TELEFONIX TF1 TONERANGER CABLE FAULT FINDER REPAIRED

Product Description

---

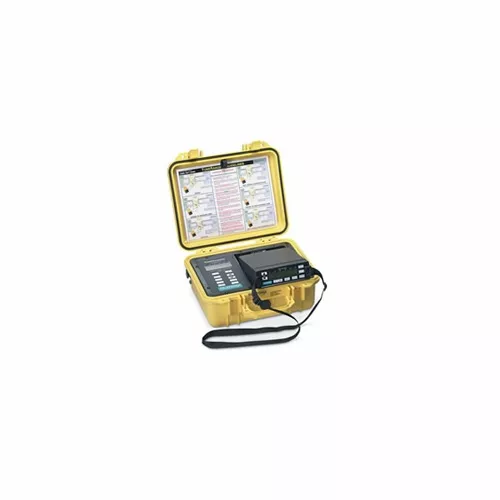

TELEFONIX TF1 TONERANGER CABLE FAULT FINDER REPAIREDFinally a precise locator that allows you to follow an audible signal which distinctly changes at the fault location – even for high resistance faults.The ToneRanger® locates resistance faults in twisted pair cable by transmitting two simultaneous frequencies, which are microprocessor analyzed in the receiver. This achieves a reduction in the tone “carry-by” (tone audible beyond location of the fault) of 30 to 1. Increased sensitivity will locate faults to 100k ohms. The ToneRanger® is not fooled by cable size changes, gauge changes, water, hidden slack loops, bridge taps, capacitance build outs, or load coils. The ToneRanger® is accurate, reliable, cost effective, and significantly minimizes the amount of time it takes a user to locate and isolate a fault.Test Set Model TF1A includes Transmitter and Receiver with Humbucker Lollipop Hand-coil for fault locating in PIC, Pulp, and Paper Cables.Also included is a Pneumatic Headset, 30 foot Output Three Wire Test Cable, 30 foot Ground Wire, and Operation Manual.L1 Aerial Humbucker Lollipop Lay-up Stick Accessory. Humbucker Lollipop Style.For locating Faults in aerial cables. BW1 Buried Wand Accessory.For locating faults in buried cableTest Set includes:Transmitter ReceiverHumbucker Lollipop Hand-coil for fault locating in PIC, Pulp, and Paper Cables Pneumatic Headset 30 foot Output Three Wire Test Cable30 foot Ground WireOperation Manual.Works with Humbucker Lollipop hand coil only.requires8 “AA” batteries10″D” batteries
