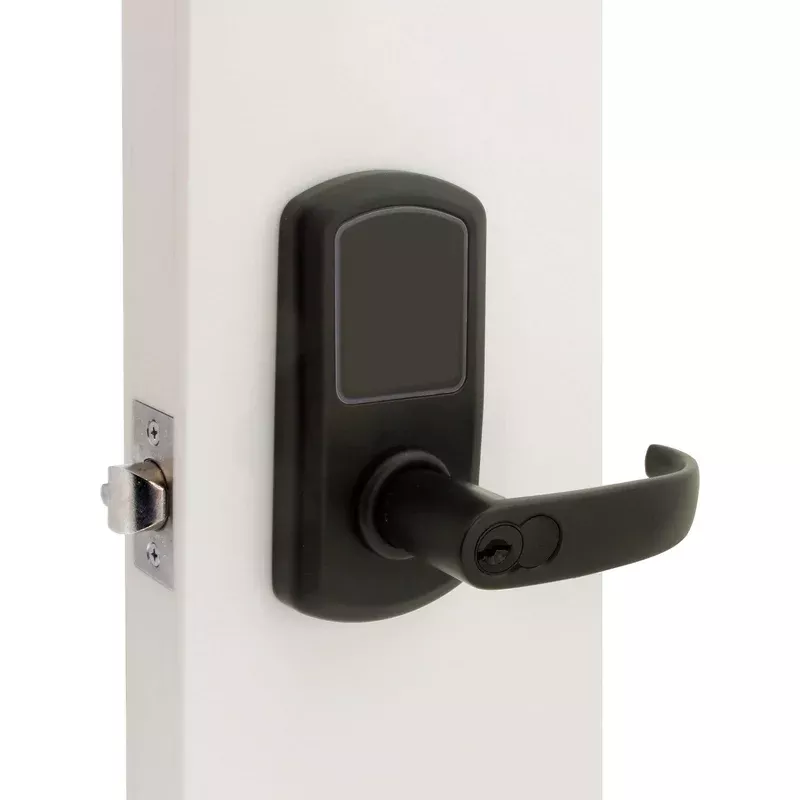

TownSteel E-Elite 5000 Series Grade 1 Touch Screen Electronic Lock w/Bluetooth -Flat Black

The TownSteel E-Elite Grade 1 Electronic Locks are truly one of a kind.

Why? Because they don’t require ANY extra drilling in the door! Just a standard 2 1/8″ Hole with through bolts like standard Commercial Doors will (should) have!

Programming Features

• 400 user codes interchangeable with RFID keycards/ stickers
• Code Length: 6 to 10 digits, with anti-pry
• Powered with 4 AA Alkaline batteries, up to 1 year battery life
• System Settings: Passage Mode, Verification Mode, and Sound Adjustment
• BLE Technology through our mobile app (download in the play store)

Mechanical Specifications

• Door Thickness: 1-3/4″
• Backset: 2-3/4″ standard
• Clutched Trim
• Latch bolt: stainless steel, deadlocking, “throw
• Faceplate: 1-1/8″x 2-1/4″
• Strike: ASA strike standard, 1-1/4″ x 4-7/8″

Cylinder Specifications

• SC4 Key, 6 pin Schlage C keyway

Certifications

• ANSI/BHMA A156.2 — A156.2-2011 Grade 1 certified

• ANSI/BHMA A156.25 — Meets or exceeds all applicable requirements

• UL/ULC — UL 10C 3-hour rated

• BAA – Meets guidelines of the Buy American Act

• ADA – Meets requirements of the Americans with Disabilities Act

• RoHS – Meets requirements of EU RoHS Directive 2002/95/EC

Warranty

• 1-year limited for electronic
• 4-year limited for finish
• 9-year limited for mechanical

Downloads

• E-Elite Door Template
• E-Elite Lock Installation Guide
• E-Elite 5000 Programming Guide
