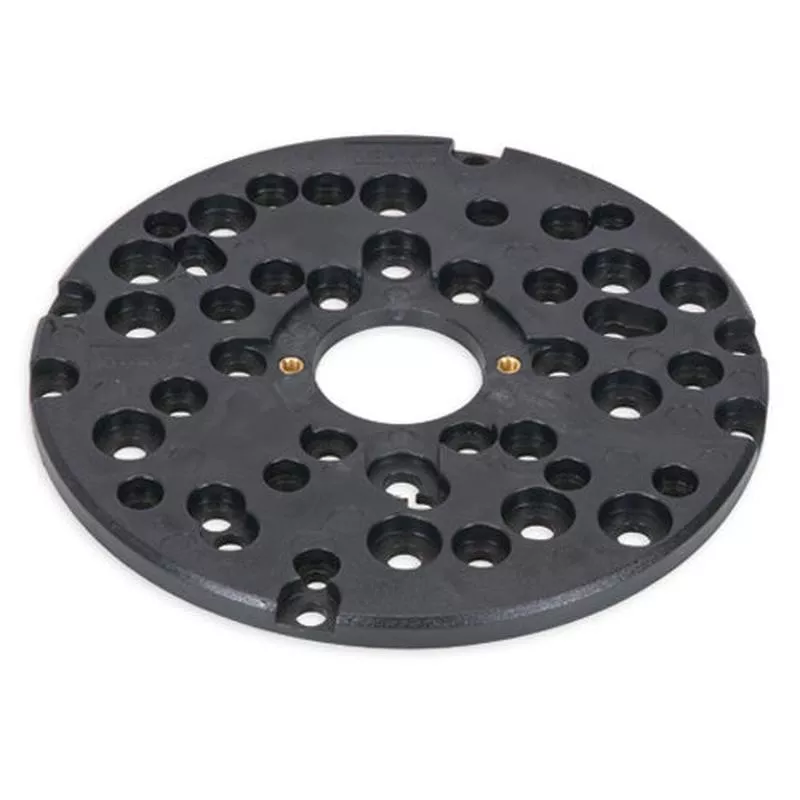

The Trend Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.
Key Features of theTrend Unibase:
- Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.
- Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
- Instructions for fitting
- The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 – GB32). For larger diameter cutters a 40mm guide bush (GB40) is available.
- Ideal for hinge jig and lock jig
Technical Specifications of the Trend Unibase:
Diameter=170mm
Thickness=8mm
Bore=39mm
Recess=60mm
Included with theTrend Unibase:
1x Line Up Pin 8 & 12 Mm Shank
1x Guide Bush 16 Mm
1x Fixing Screw Pack
