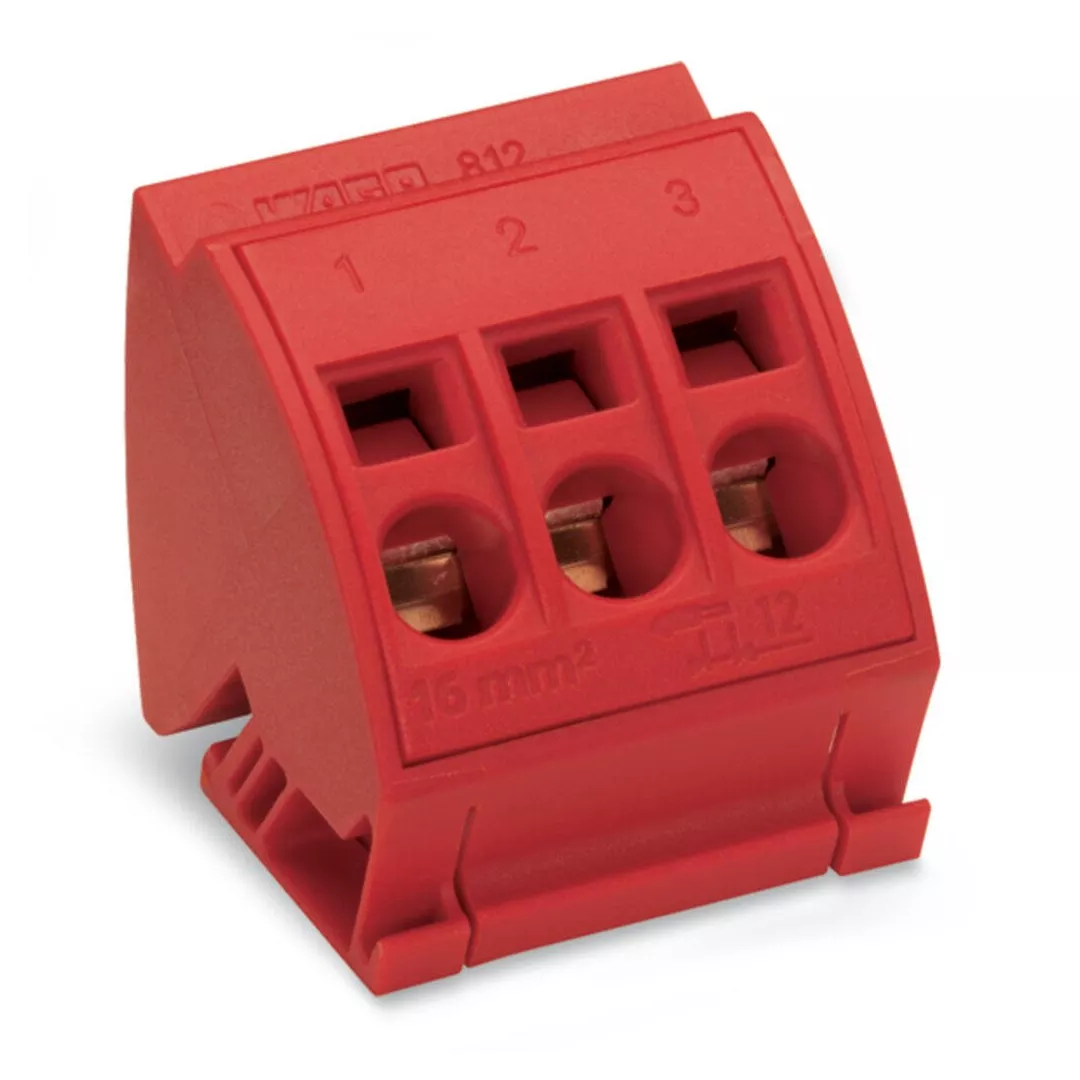

The common potential terminal block (item number 812-113) simplifies electrical installations. Ensure that the strip lengths are 12 mm when connecting conductors to this common potential terminal block. This product features conductor terminals and utilizes CAGE CLAMP®. Our proven universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. The item’s dimensions are 38 x 42.5 x 43.5 mm (width x height x depth). Depending on the conductor type, this common potential terminal block is ideal for conductor cross sections ranging from 1.5 mm² to 16 mm². It has one level. The single potential can connect using the three clamping points The red housing is made of polyamide (PA66) for insulation.
Specifications
| Brand Name | Wago Corp | Item Name | Busbar Terminal Block |
| Type | 1-Level | Voltage Rating | 1000 V |
| Amperage Rating | 96 A | Mounting Type | DIN Rail |
| Wire Strip Length | 12 mm | Connection Type | Cage Clamp |
| Temperature Rating | -35 to 85 °C | Block Material | Polyamide |
| Color | Red | Dimensions | 1.496 in W x 1.713 in D x 1.673 in H |
| For Use With | 10 x 3 mm Busbars | Standards | CSA Certified, cURus Certified, CCA Approved, KEMA-KEUR, RoHS Compliant, UL94 V0 |
