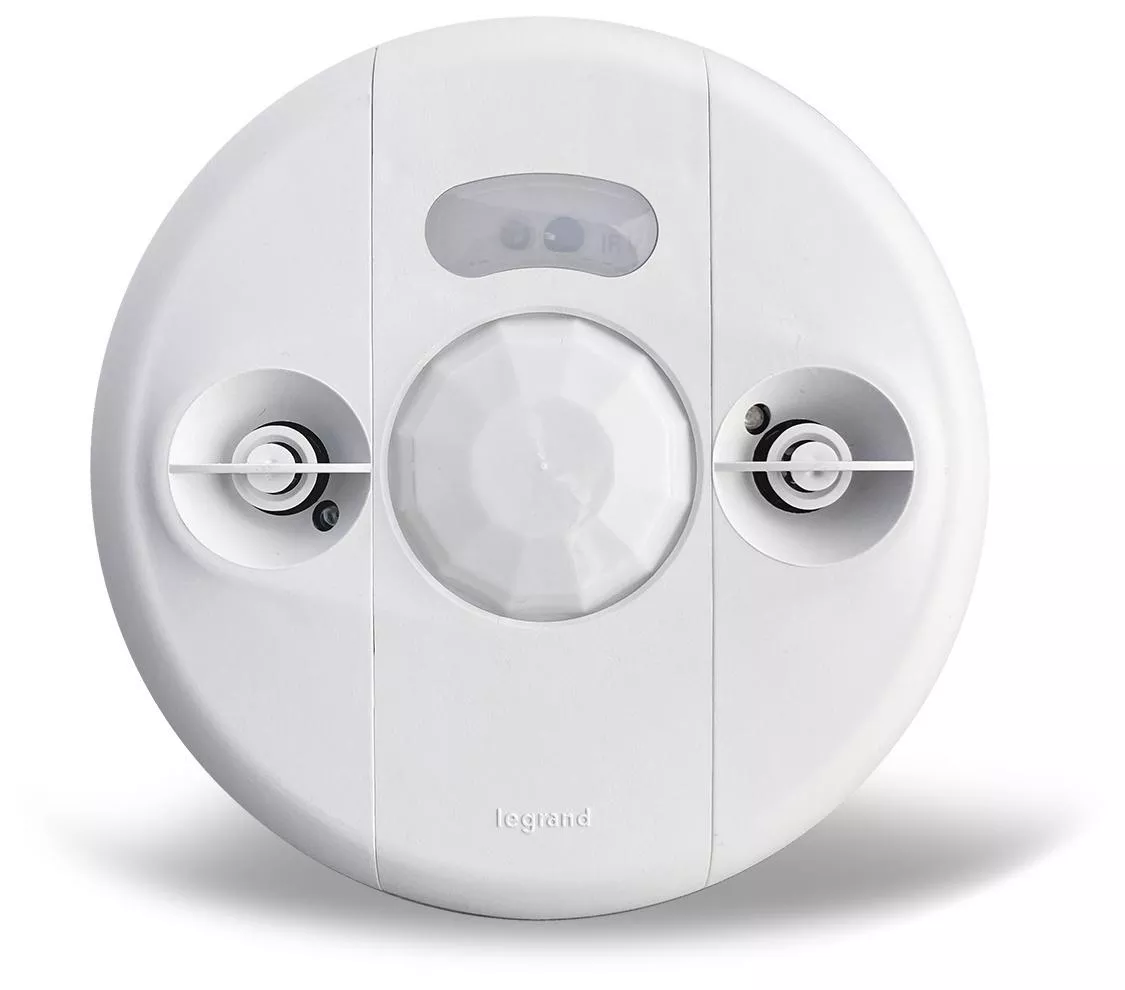

WattStopper® Digital dual technology occupancy sensor. Ceiling mount. Automatic On/Off light output. Combines passive infrared and ultrasonic technologies for most comprehensive coverage. Component of digital lighting management integrated control system. Quick access to Push learn for system personalization. Digital sensor with LCD display and programming pushbuttons behind snap-off cover. IR transceiver for wireless configuration and remote control. Low profile design for architectural appeal.
Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
Push n’ Learn™ functionality for customization without the need for tools or a PC
Digital Lighting Management components plug together on a free-topology Category 5e DLM local network
Infrared (IR) transceiver for wireless configuration and control
Ultrasonic diffusion technology spreads coverage to a wider area (patented); 40KHz signal
360 degree PIR coverage
Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
Specifications
Brand Name
WattStopper
Item Name
Occupancy Sensor
Type
Dual Technology, Wall Switch, Automatic On/Off, Manual-On/Off
Voltage Rating
24 VDC
Amperage Rating
20 mA
Sensor Type
Passive Infrared and Ultrasonic
Viewing Angle
360°
Coverage Area
1000 ft²
Color
White
Mounting Type
Ceiling, 4 in Octagonal Box
Frequency Rating
40 kHz
Response Time
20 min
Lens Type
LED
Terminal Connection
(2) RJ45
Dimensions
4-1/2 in dia x 2 in H x 0.7 in D
Temperature Rating
32 – 104 °F
Includes
Blade Storage Compartment with Spring Loaded Locking Mechanism
Standards
UL and cUL Listed, FCC Part 15 Compliant
UPC
754182926329
