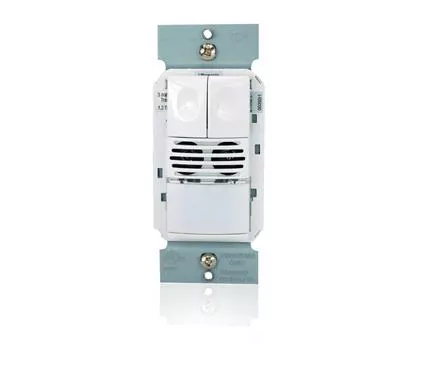

WattStopper® Dual technology wall switch sensor turns lights off and on based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. Replaces existing wall switches and fits behind a standard decorator wall plate. High sensitivity and dense coverage for exceptional performance. Two relays for control of two separate lighting leads or circuits. Allows multi-way control from one of up to four control locations. colour-matched lens and low profile for appealing design. Optional neutral connection with break off tab to expose neutral terminals. Defaults to auto-on operation for maximum energy savings. Load: 0 to 1200 W ballast and LED, 1/6 HP.
Collection consolidated of in 347 V to white option
High sensitivity and dense coverage for exceptional performance
Two relays for control of two separate lighting loads or circuits
Color-matched lens and low profile for appealing design
120/240/277 VAC and 347 VAC models
Defaults to Manual-ON operation for maximum energy savings
Retrieving data. Wait a few seconds and try to cut or copy again.
Specifications
Brand Name
WattStopper
Sub Brand
Wattstopper
Item Name
Occupancy Relay Sensor
Type
Wall Switch, Dual Technology
Voltage Rating
347 VAC
Amperage Rating
4.3 A
Number of Poles
Multi,Location
Sensor Type
Passive Infrared
Sensing Distance
10.6 m Floor/Front, 2.2 m Side
Color
White
Mounting Type
Surface
Frequency Rating
0 – 60 Hz
Maximum Load Capacity
1200 W
Material
Plastic
Dimensions
44 mm W x 46 mm D x 69 mm H
Mounting Height
1.2 m
Includes
Hard Carrying Case, Instruction Manual, Mounting Clamp, 3 x AA 1.5 V Alkaline Batteries
Standards
ROHS, UL, cUL, FCC part 15, Complies with 2017 NEC requirements, RoHS
Application
For Commercial, Offices, Conference Rooms, Lunch/Break Rooms
UPC
754182935741
