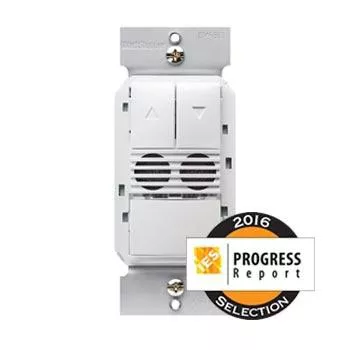

The DW-311 dual technology dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It combines the benefits of passive infrared (PIR) and ultrasonic occupancy detection technologies and works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.
Collection consolidated of in 347 V to white option
Defaults to Manual-ON operation for maximum energy savings
High sensitivity and dense coverage for exceptional performance
Color-matched lens and low profile for appealing design
Supports Partial-ON operation for energy code compliance or incentives
120/277VAC and 347VAC models
Allows fully functional multi-way control from up to four switch locations
Specifications
Brand Name
WattStopper
Item Name
Wall Switch Sensor
Type
Dual Technology
Voltage Rating
347 VAC
Amperage Rating
4.3 A
Number of Poles
Multi,Location
Sensor Type
Occupancy
Sensing Distance
Major Motion: PIR 35 x 30 ft, Ultrasonic 20 x 20 ft, Minor Motion: PIR 20 x 15 ft, Ultrasonic 15 x 15 ft
Viewing Angle
180°
Color
White
Mounting Type
In-Wall
Series/Model
DW-311
Frequency Rating
50/60 Hz
Maximum Load Capacity
1500 W
Response Time
5, 15, 30 min
Dimmable
Yes
Terminal Connection
Flying Leads
Dimensions
4 in W x 3.03 in D x 2.48 in H
Mounting Height
4 ft
Temperature Rating
32 – 131 °F
Includes
Sensor Mask
Standards
cUL Listed in File Number E101196, RoHS Compliant, UL Listed, UL 924 Listed
UPC
754182940455
