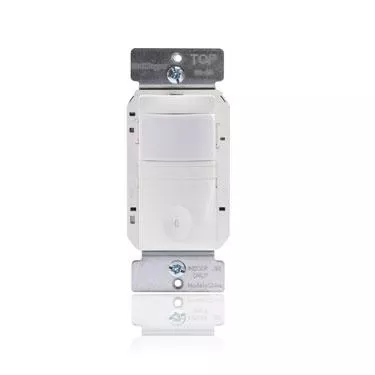

The CS-50 Passive Infrared (PIR) Vacancy Sensor provides automatic shutoff for single-pole lighting control applications in the home. It is engineered to comply with California’s Title 24-2013 residential energy code.FEATURES AND BENEFITS:- Automatic-off control- Two-wire sensor; no neutral connection- LED status indicator- Adjustable time delay- Compliant with California Title 24-2008
Collection consolidated to white option
Manual-on/automatic-off control
LED status indicator
Adjustable time delay
Two-wire sensor; no neutral connection
Specifications
Brand Name
WattStopper
Sub Brand
Pass & Seymour
Item Name
Vacancy Sensor
Type
2-Wire
Voltage Rating
120 V
Sensor Type
Passive Infrared
Sensing Distance
3.7 m, 7.6 m
Viewing Angle
0 – 180°
Color
White
Mounting Type
Wall
Frequency Rating
0 – 60 Hz
Maximum Load Capacity
600 W
Material
Plastic
Dimensions
44 mm W x 45 mm D x 68 mm H
Mounting Height
1.2 m
Temperature Rating
0 – 50 °C
Application
For Bedroom, Family/Living Room
UPC
754182926923
