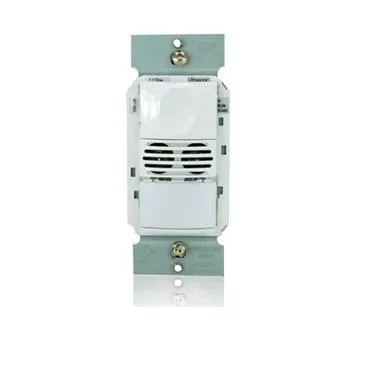

The DSW-301 Dual Technology Wall Switch Occupancy Sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.FEATURES AND BENEFITS:- High sensitivity and dense coverage for exceptional performance- Allows multi-way control from one of up to four control locations- Color-matched lens and low profile for appealing design- Optional neutral connection with break off tab to expose neutral terminals120/277VAC and 347VAC models- Defaults to Manual-On operation for maximum energy savings
Collection consolidated of in 347 V to white option
Zero-crossing for long relay life
Vandal resistant lens combines precise coverage with durability
Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds
Test mode allows quick and easy adjustments
Selectable audible alert for impending shutoff
In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually; ideal for presentations
Four occupancy logic options to customize control to meet application needs
The DSW-301 sensors can be wired together for convenient control of a common load only with other DSW-301 sensors
Specifications
Brand Name
WattStopper
Sub Brand
Wattstopper
Item Name
Occupancy Sensor
Type
Wall Switch, Dual Technology
Voltage Rating
347 VAC
Amperage Rating
4.3 A
Sensor Type
Passive Infrared
Sensing Distance
10.6 m Floor/Front, 2.2 m Side
Color
White
Mounting Type
Surface
Frequency Rating
0 – 60 Hz
Maximum Load Capacity
1500 W
Material
Plastic
Dimensions
44 mm W x 46 mm D x 69 mm H
Mounting Height
1.2 m
Includes
Hard Carrying Case, Instruction Manual, Mounting Clamp, 3 x AA 1.5 V Alkaline Batteries
Standards
UL, cUL, FCC part 15, Complies with 2017 NEC requirements, RoHS
Application
For Commercial, Offices, Conference Rooms, Lunch/Break Rooms
UPC
754182935680
