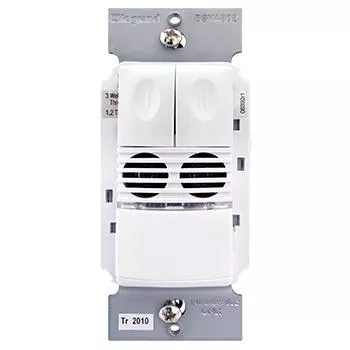

The DSW-302 Dual Technology Wall Switch Sensor turns lights OFF and ON based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. The DSW-302 replaces existing wall switches and fits behind a standard decorator wall plate.FEATURES AND BENEFITS:- High sensitivity and dense coverage for exceptional performance- Two relays for control of two separate lighting leads or circuits- Allows multi-way control from one of up to four control locations- Color-matched lens and low profile for appealing design- Optional neutral connection with break off tab to expose neutral terminals- 120/277VAC and 347VAC models- Defaults to Auto-ON to 50% operation for maximum energy savings
Collection consolidated of in 347 V to white option
High sensitivity and dense coverage for exceptional performance
Two relays for control of two separate lighting loads or circuits
Color-matched lens and low profile for appealing design
120/240/277 VAC and 347 VAC models
Defaults to Manual-ON operation for maximum energy savings
Retrieving data. Wait a few seconds and try to cut or copy again.
Specifications
Brand Name
WattStopper
Sub Brand
Pass & Seymour
Item Name
Occupancy Sensor
Type
Dual Relay, Wall Switch
Voltage Rating
120 – 277 VAC
Amperage Rating
8.3 A
Sensor Type
Passive Infrared
Sensing Distance
2.2 m, 10.6 m
Color
White, Gloss
Mounting Type
Surface
Frequency Rating
0 – 60 Hz
Maximum Load Capacity
1200 W
Material
Plastic
Dimensions
44 mm W x 46 mm D x 69 mm H
Mounting Height
1.2 m
Includes
Hard Carrying Case, Instruction Manual, Mounting Clamp, 3 x AA 1.5 V Alkaline Batteries
Standards
ROHS, UL, cUL, FCC part 15, Complies with 2017 NEC requirements, RoHS
Application
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
UPC
754182935505
