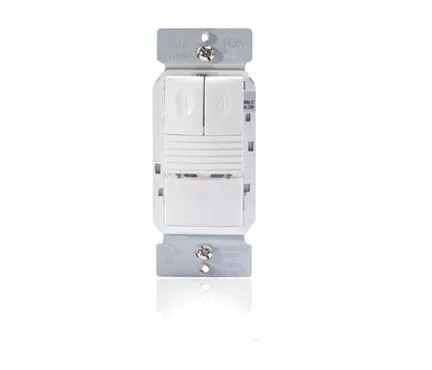

Passive infrared wall switch occupancy sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits. High sensitivity and dense coverage for exceptional performance. Two relays for control of two separate lighting loads or circuits. Defaults to manual-ON to 50% operation for maximum energy savings. It allows multi-way control from one of up to four control location.
High sensitivity and dense coverage for exceptional performance
Two relays for control of two separate lighting loads or circuits
Defaults to Auto-ON to 50% operation for maximum energy savings
Optional neutral connection with break off tab to expose neutral terminals
120/240/277 VAC and 347 VAC models
Allows multi-way control from one of up to four control locations
Specifications
Brand Name
WattStopper
Sub Brand
Pass & Seymour
Item Name
Occupancy Sensor
Type
Dual Relay, Indoor, Wall Switch
Voltage Rating
120 – 277 VAC
Amperage Rating
4.3 A
Sensor Type
Passive Infrared
Sensing Distance
2.2 m, 10.6 m
Coverage Area
1050 ft²
Color
White, Gloss
Mounting Type
Strap, Surface
Frequency Rating
0 – 60 Hz
Maximum Load Capacity
1000 W
Terminal Connection
Flying Leads
Material
Plastic
Dimensions
44 mm W x 46 mm D x 69 mm H
Mounting Height
1.2 m
Temperature Rating
35 °C
Standards
UL244A, 508
Application
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
UPC
754182935321
